The MIDI Channel constrainer

General discussion about Gig Performer
21

OK… according to my suggestion for using the setlist mode, i tried that approach myself and it works flawlessly! This is what i have done:

  1. set up some rackspaces - each for one sound. I prefer to send the local rackspaces output through a separate gain block (for adjusting each rackspaces own volume) to the global rackspace, where i can have a “Global Volume” at the end of the chain…

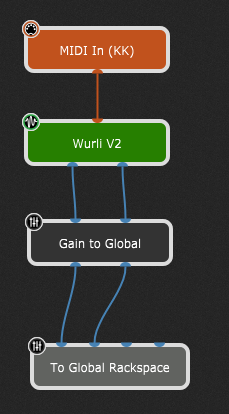

    The wiring of the local rackspace:
    local_rackspace_wiring

The panel of the local rackspace:
local_rackspace_panel

The wiring of the global rackspace:
global_rackspace_wiring

The panel of the global rackspace:
global_rackspace_panel

The list of rackspaces/variations:
rackspace list

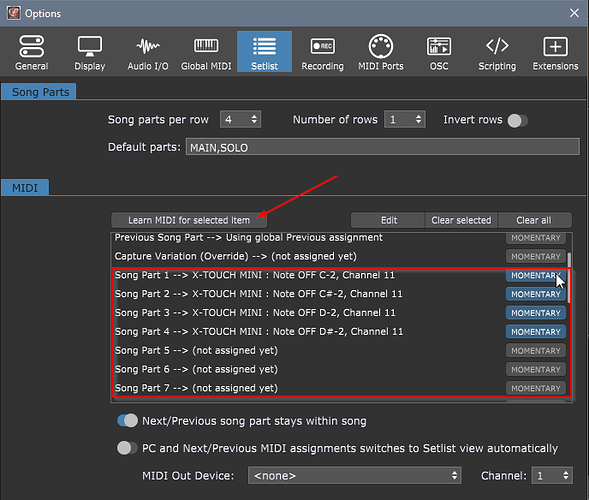

  1. Go to the Options/Setlist menu and learn your MIDI-keyboard’s buttons to the corresponding “Song Part Selection” - the controller buttons should preferably be configured as “Momentary” (in the setlist options as well)!

    setlist options
    setlist options688×584 65.7 KB

  2. Switch to Setlist mode and add a new song which will represent your whole set of the diffrent sounds you want to have available (i called mine “Settings 1”). Then add a song part for each sound (meaningful names will be useful, i.e. the instrument’s name) and connect this song part with the corresponding rackspace/variation. To do this, just activate first the song part in the list, then click on the rackspace/variation which you want to use… proceed with the next song part / Rackspace pairing until you’re done.

    setlis view
    setlis view1919×939 233 KB

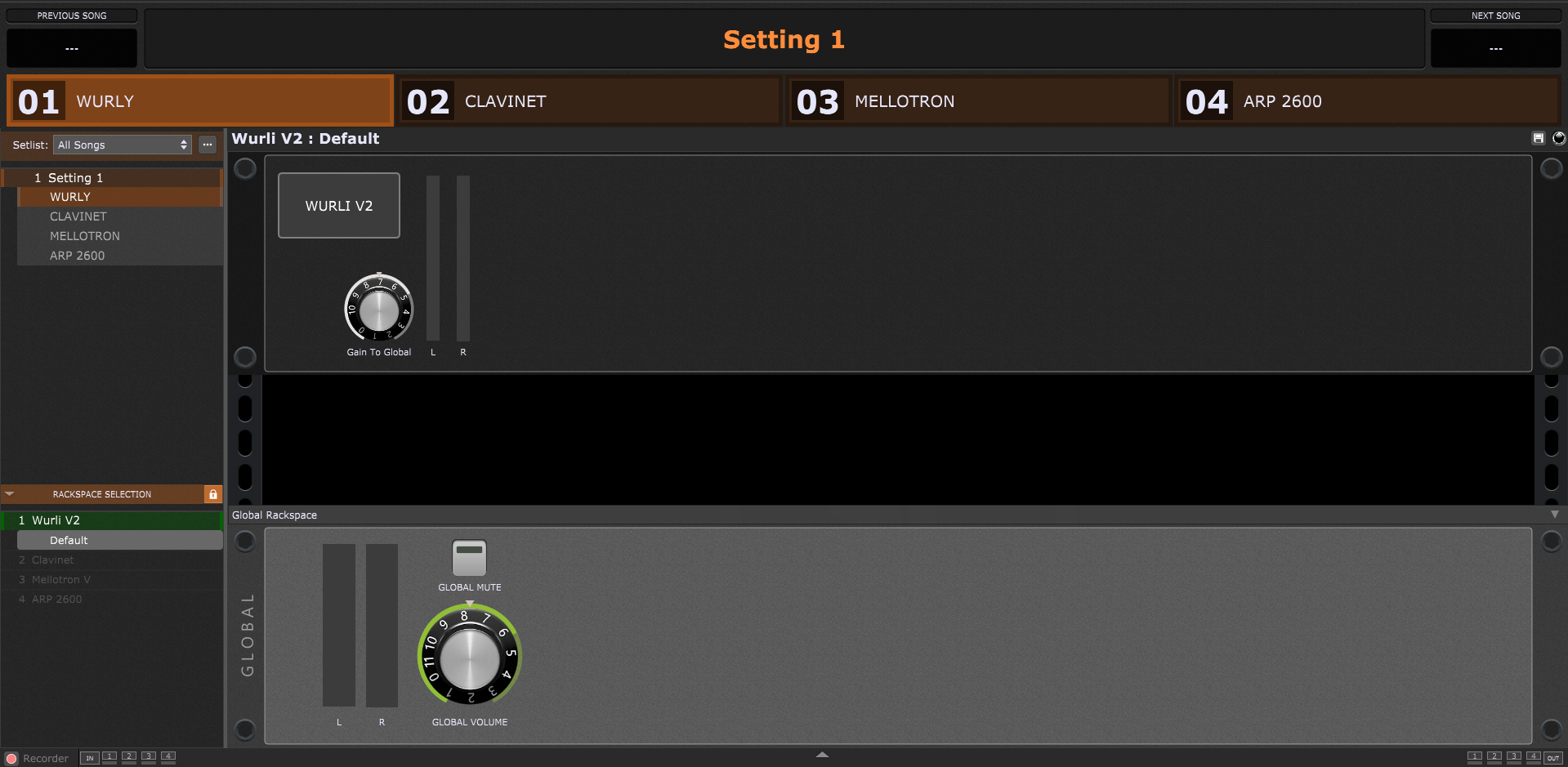

Here you can see how i switched through the diffrent songparts with the buttons on my controller while i played some notes:
Setlist switching

BTW: This is the gig file for that test-setup:
Setlist as plugin selector.gig (317.2 KB)

No scripting needed! This should be the easiest and most secure way to do what you actually want to do!

5 Likes
22

Schamass’s solution would also allow you to have patch persist, or overlapping midi/sound functionality without having to add scripting to achieve that which given your style of play would probably be an asset.

This is very similar to how I set up my system and I use Global Rackspace downstream of my local rackspaces to control mix and global effects like Leslie making it the last stop in the signal chain.

Since you have only VST sound sources you’d have no issues switching between sounds/rackspaces without interruption.

1 Like
23

I just feel compelled to comment here… this is SO COOL how this community reacts to a question, particularly from a newbie to GP. And I’ve noticed whatever the solve ends up being, the most robust solution tends to come from the approach of exhausting the designed system of GP, before considering scripting. I do have a background in software development and new user support and this is VERY rare to find, most especially in music software. I am SO pleased I found Gig Performer.

6 Likes
24

Thank you for the kind words. This community is awesome.

3 Likes
25

Yeah, scripting was originally intended to allow us to experiment with features that might ultimately be integrated in to GP directly. As GP evolves, that continues to happen.

26

I seem to recall reading about how way back when ILM started doing motion control camera rigs using an Apple II to run its motors that Steve Wozniak said his mind was blown that people would use his little assemblage of salvaged HP boards to do something like that. I think you guys are guilty of implementing really good design.

27

Schamass,

Thank you so much for the detailed explanation. I will check tonight if the current setup works for me. If not, I’ll definitely dive into your solution!!! :+1:t2:

It worked, but I think I’ll try the other option too.

Sorry for the late reaction, but as a newby I had to wait a day before I could reply again!

1 Like
