Synchronize LEDs from the Novation Launchkey pads with the panel

General discussion about Gig Performer
83

Type in Switch

84

Yes i have typed in Switch

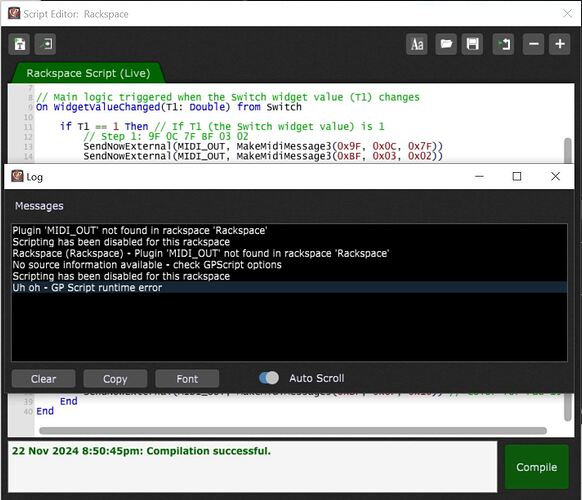

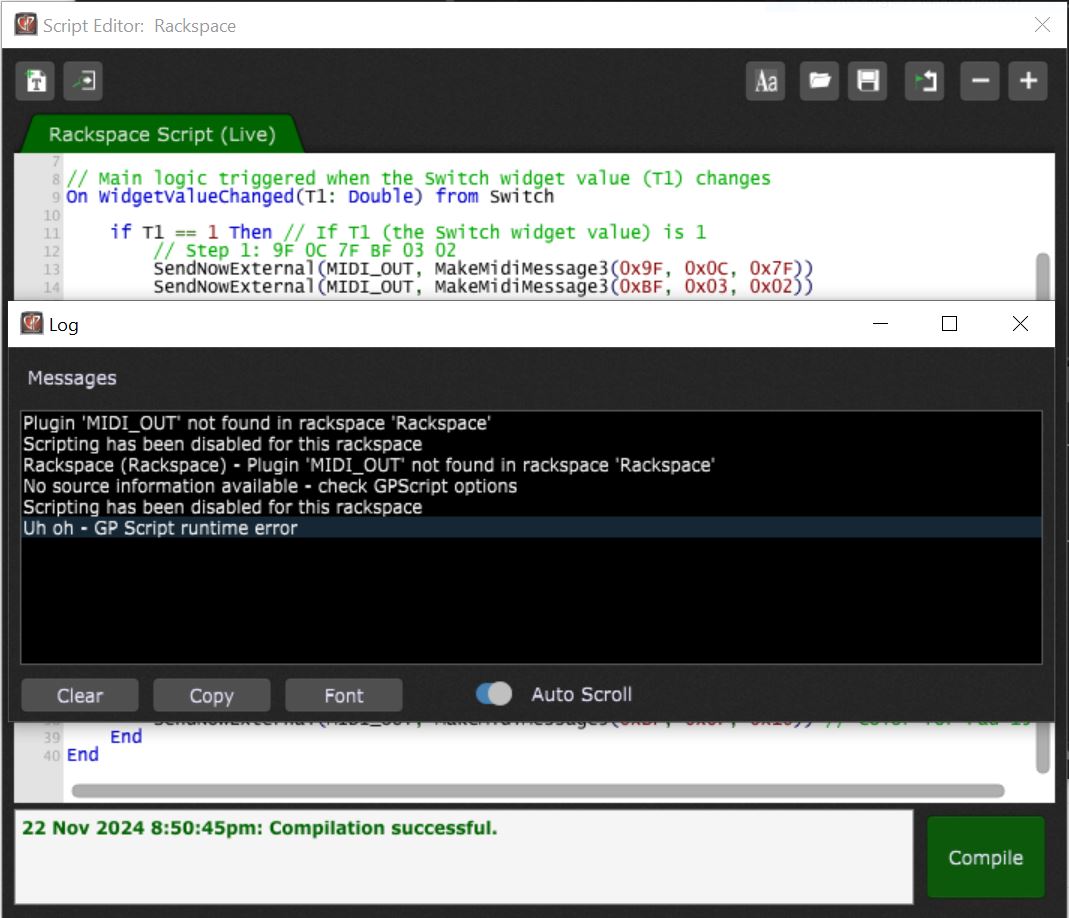

Error Rackspace4
Error Rackspace41069×918 102 KB

85

Give the MIDI out plugin in the rackspace the gp script handle MIDI_OUT via the plugin popup menu like shown in the documentation I posted.

86

Exactly, that was it. There are no more error messages. Unfortunately, the parameters in the script are incorrect, so I can’t see any changes in the lighting on my controller. But that’s a different issue

87

Now you have climbed the first step in GP script

2 Likes
88

Thank you so much!

89

That is because you are not sending the right note numbers and sending to the wrong MIDI channel.

90

Why are you not using a loop for step 4?

91

I just edited his script. A loop would be better but the numbers of the pads are actually not consecutive.

Should be as follows, so you could do 2 loops

excerpt

    // Step 4: Change Pad colors (BF xx yy) - without loop
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x70, 0x01)) // Color for Pad 0
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x71, 0x02)) // Color for Pad 1
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x72, 0x03)) // Color for Pad 2
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x73, 0x04)) // Color for Pad 3
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x74, 0x05)) // Color for Pad 4
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x75, 0x06)) // Color for Pad 5
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x76, 0x07)) // Color for Pad 6
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x77, 0x08)) // Color for Pad 7
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x60, 0x09)) // Color for Pad 8
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x61, 0x0A)) // Color for Pad 9
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x62, 0x0B)) // Color for Pad 10
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x63, 0x0C)) // Color for Pad 11
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x64, 0x0D)) // Color for Pad 12
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x65, 0x0E)) // Color for Pad 13
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x66, 0x0F)) // Color for Pad 14
        SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, 0x67, 0x10)) // Color for Pad 15
92

With loops after defining y and z as integers

// Step 4: Change Pad colors
        y = 1
        while y < 17 do
            z=0x70
            while z<0x78 do
                 SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, z, y))
                 y=y+1
                 z=z+1
            End
            z=0x60
            while z<0x68 do
                SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, z, y))
                y=y+1
                z=z+1
            End
        End
93

Or a shorter loop

   y=1
   z=0x60
        While y<0x17 do
            if z < 0x68 Or z>0x6F then
                SendNowExternal(MIDI_OUT, MakeMidiMessage3(0x90, z, y))
                y=y+1
            End
            z=z+1
        End
94

I just wanted to check in and explain why I haven’t written anything more on the topic. I haven’t made any progress with GP Script at all. However, I’ve now found a solution for my pad lighting setup outside of GigPerformer that doesn’t require scripting :+1:. Since I have a Novation Launchkey keyboard, I looked into their software. On their website, there’s an editor that allows you to configure the Launchkey via WebMIDI. Using the editor, I was able to set up the toggle function, choose my desired colors, adjust the key behavior, and assign the CC values exactly the way I wanted.
Even though it didn’t work out through scripting, I want to thank everyone who took an interest in my topic.

95

Hi @genM

I tried this on my LaunchKey MINI MK3 and although I can get the CCs to work (custom mode), I don’t get any LED feedback when pressing the buttons in GP. How did you accomplish this?

SteveC

96

For me, the solution “hardware controls software” works best. I try to control as much as possible through the controller and avoid using the mouse. You’re right—“software controls hardware” doesn’t work. That’s normal for the potentiometers anyway. With my solution, you also can’t control the pads on the controller via the pads on the panel. For that, you’d need scripting, which I now reject and doesn’t fit into my operating concept.

97

Oh, so I guess the LED’s don’t synchronize with Gig Performer as you originally intended.

I was messing with it and as far as I can tell, there is no remote LED feedback in custom mode.

98

I found this article and got my LKey MINI MK3 to work by allowing LED feedback.

I set the pads in custom mode to CC’s with toggle. and in Gig Performer turn sync on and turn Momentary to latching off. Now in custom mode everything works and keeps GP and the controller LED’s in sync perfectly.

SteveC

2 Likes
99

This is great! I was following this thread with interest, but am not keen to start digging into scriptlets at all - it’s the kind of rabbit hole I can’t afford to dive into, this is great.

Just one thing that I had to do on my LK (not configurable via Novation Components) is to make sure ‘Ext. Feedback’ is set to ‘On’. Now, doing what SteveC said works for me. Cheers!

100

Yeah, no scripts or scriptlets required now. It required update the the firmware to work but compontents does that for you.

SteveC
