Widget Value not staying for the selected widget

[mat]

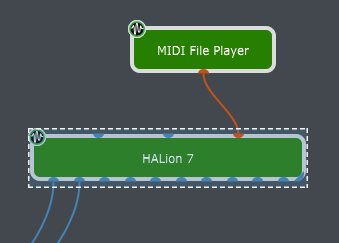

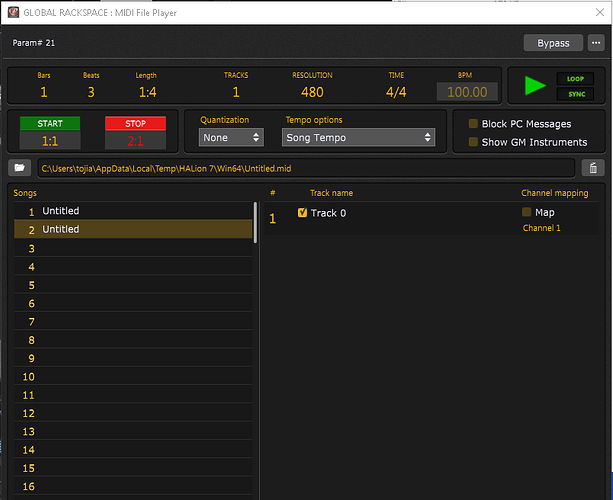

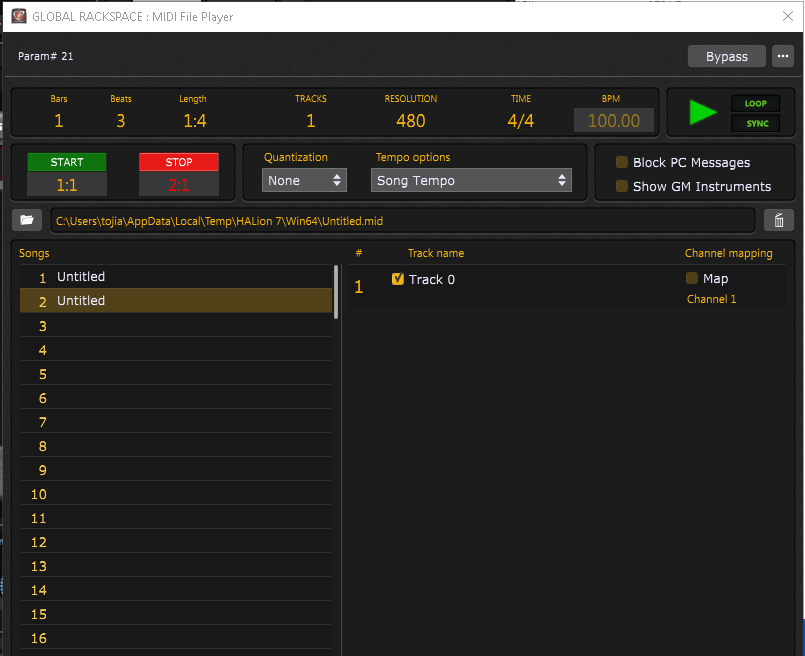

I have a Midi File player on the global rackspace with 2 midi files with drums pattern on it.

Its routed to Halion 7

When i manually set value 0 in the widget value textbox, its playing the 1st loop, if i manually set value 1, it will play 2nd midi loop.
I want value 0 on AA button and value 1 on BB button, so when i press AA button it will play 1st loop and BB will play 2nd loop.

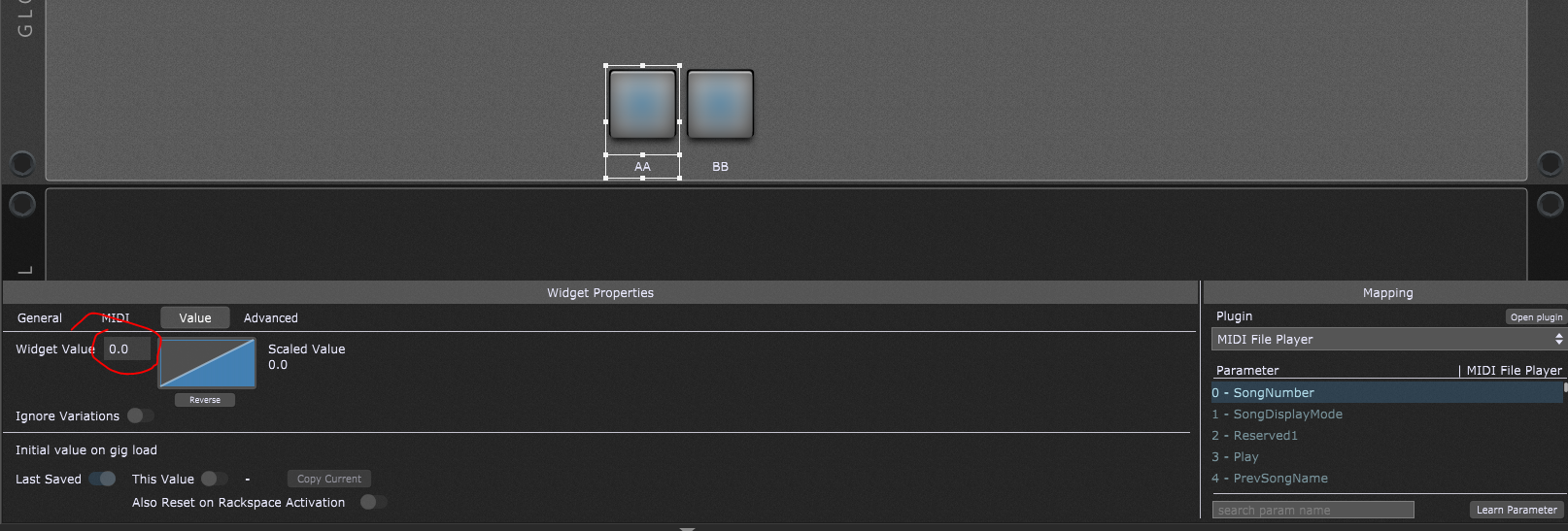

But the problem i see is, when i set value on AA, BB value is also getting set with the same value and when setting value in BB widget value, AA value is getting set with the value.

[Hermon]

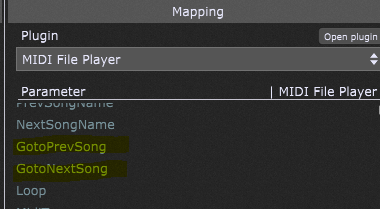

You could use GotoPrevSong and GotoNextSong parameters to switch from one to the other.

[mat]

So If i have 10 midi drum loops, will this require to press the next widgets 10 times to reach the last one?

[rank13]

@mat this solution is basically the same as the one @npudar posted about the rackspace selection. Instead you are mapping the widgets to the Midi File Player’s SongNumber parameter.

How to setup widget to jump to a Rackspace

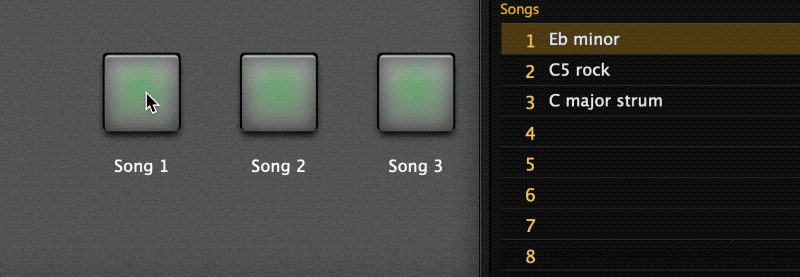

YAS! (Yet Another Solution ) Steps: Add a System Actions block in the Global rackspace Add three widgets in the Global rackspace, and map them to the ‘ProgramChange’ parameter Group them into a Radio Group Adjust the Scaling Curves of each widget (0, 1m, 2m, respectively). Here is a demo gig file. SystemActions-rackspace-execution.gig (71.8 KB)

You should just make sure the setting on the ‘Value’ tab of each widget has disabled the 'Send on radio button off.
