UVI Work Station - transpose via midi

Plugins
21

Well yeah, of course. The global midi monitor shows what is coming into Gig Performer from the outside.

It is not going to be affected by whatever transpose value you set in a MIDI in block.

To see what is actually coming out of a MIDI In block and into Real Guitar, you need to insert a local MIDI in block plugin between the MIDI in block and Real Guitar

1 Like
22

Only just now. And it works well, actually better than my own workaround. I did have to slightly rearrange the order.as per ss below. Cheers, and many thanks!

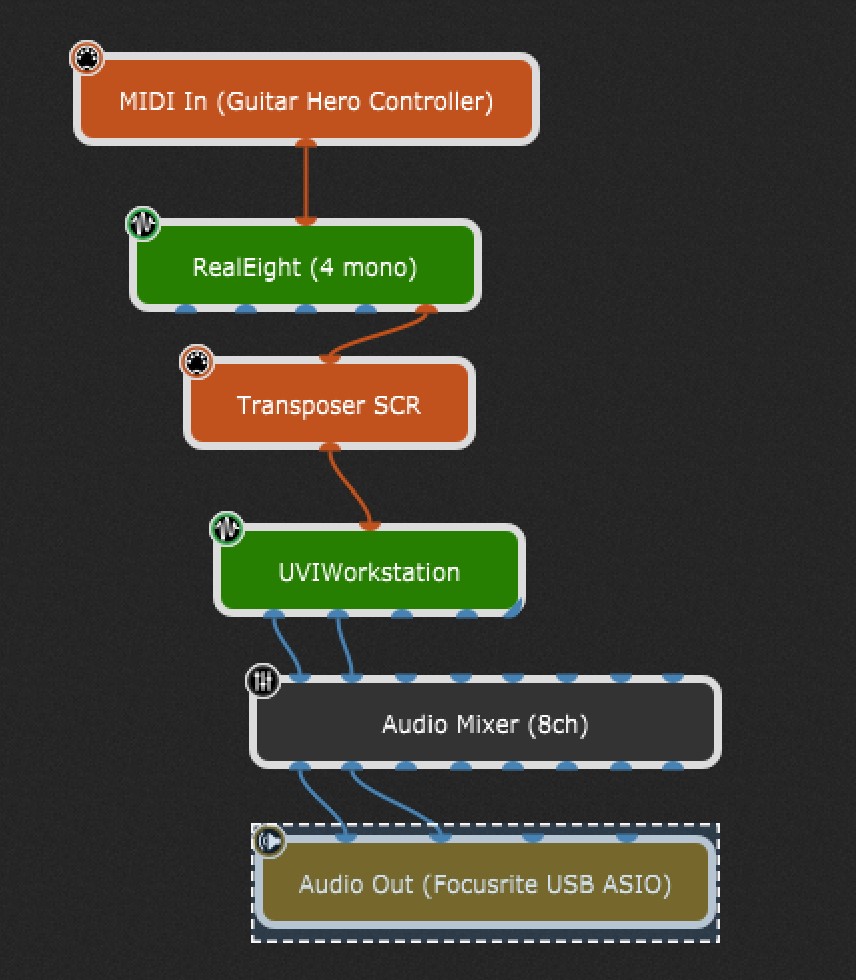

Transpose working
Transpose working856×980 130 KB

1 Like
23

I am having trouble transposing multiple plugin. One alone works fine. If I wire up the transpose mechanism to a second plugin, the plugins tend to interfere with each other. If I want to transpose a whole complete band of say five plugins, perhaps drums, bass, piano, guitar and strings, how would I do this?

Thus is what I have so far:

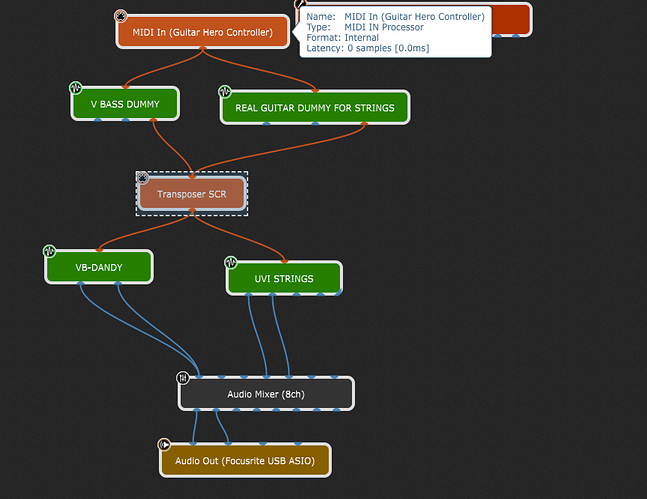

Screenshot 2024-04-24 140736
Screenshot 2024-04-24 1407361726×1332 212 KB

24

You’ll have to make separate signal branches.
This means you also have to use separate widgets to set the corresponding transpose for each branch. If they all must have the same value, just put the widgets in a link group (and maybe hide some of them).

25

Any change of creating a dummy sample for me? Just bass and one more. May be it could be stored as a sample archive?

26

Hi Al!
This is the way i meant it to be:

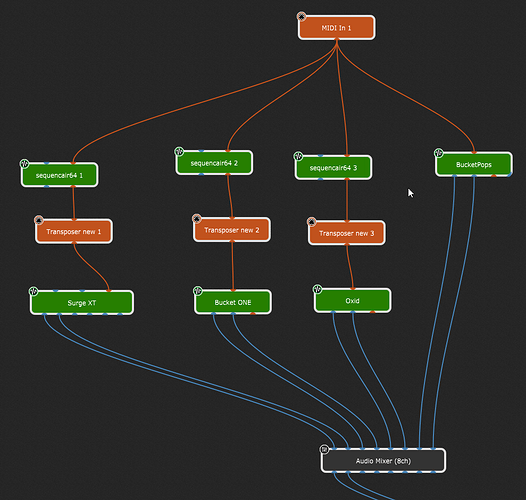

2024-05-20 11_50_15-multi transpose
2024-05-20 11_50_15-multi transpose989×940 121 KB

with a separate widget for every transpose

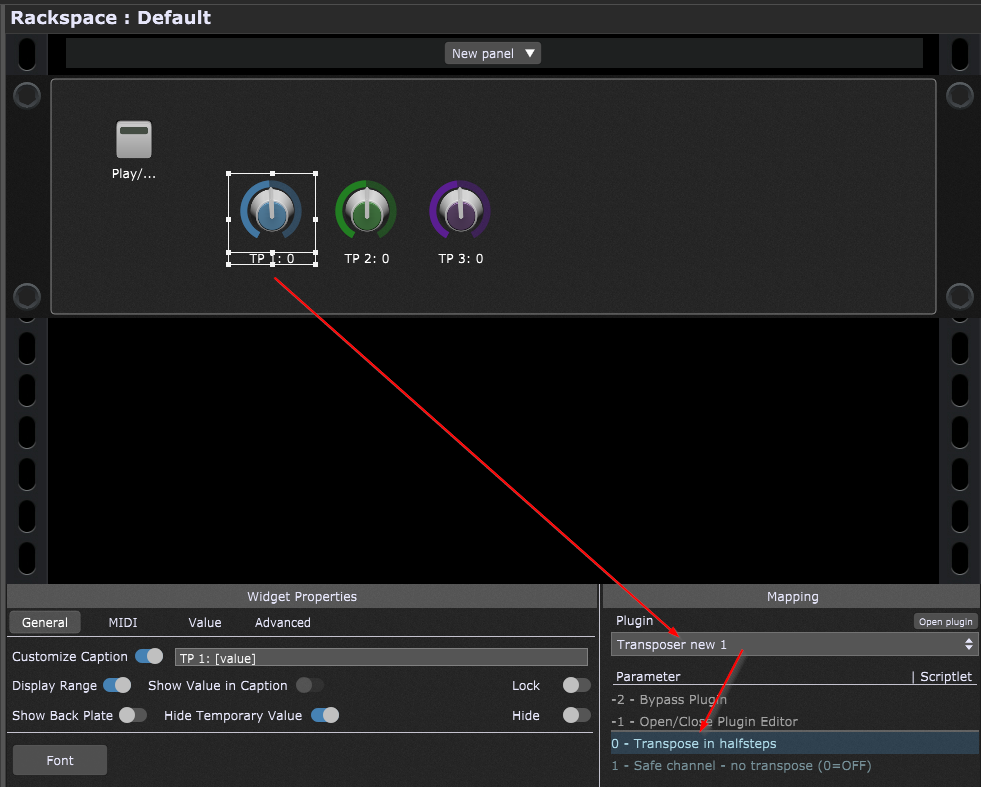

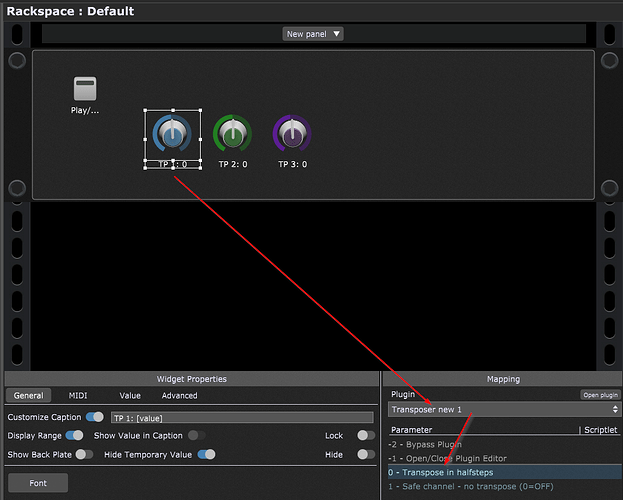

2024-05-20 11_50_59-multi transpose
2024-05-20 11_50_59-multi transpose981×787 105 KB

But there are some caveats:

  1. Please use the “new” Transposer Scriptlet (it allows you to change the transposition while playing, which won’t work with the former scriplet version).
    Transposer New SCR.gig (107.0 KB)
    Transposer new SCR.gpfav (2.0 KB)
  2. Do not use Link groups for the transpose widgets (yet)! This will cause GP 4.8 to freeze… this issue should be fixed with the next upcoming version of Gig Performer.
    This means: Right now you sure can transpose each of the plugins, but you’d have to adjust them separately, if all issues are fixed, you’ll be able to put the three widgets into one link group, so all of them will move in sync.
2 Likes
27

Thanks very much Erik. I haven’t had a chance to try this out yet, but hope to very soon. Cheers!

1 Like
