Simple Song Selector

User scripts
1

I created a script to select songs without having to iterate through the songs.
I needed this because I am using predictive loading, and iterating takes to long otherwise as it would need to load every song (rackspace) between the start and end song.

Forgive me about the name of the songs, as I used this just as proof of concept.

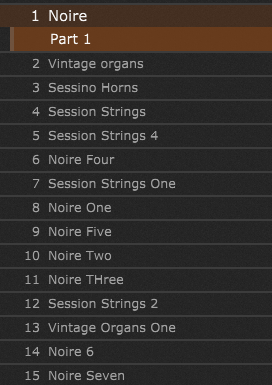

My song list looks like this:

image272×385 31.5 KB

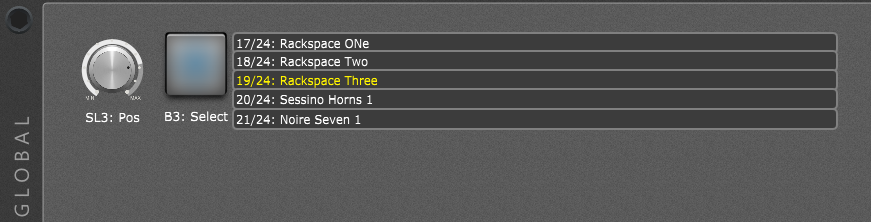

And the global rackspace like this:

image871×222 43.7 KB

The knob has GPScript handle SongSelectorKnob and the button is called SelectSongButton.
The labels have the following GP handles: LabelMinusTwo, LabelMinusOne, LabelActive, LabelPlusOne, LabelPlusTwo

The following script is used:

var
 LabelMinusTwo, LabelMinusOne, LabelActive, LabelPlusOne, LabelPlusTwo : Widget
 SongSelectorKnob, SelectSongButton : Widget
 SongNames : String array

Initialization
    SwitchToSetlistView()
End

Function FillSongNamesArray()
    var
     songsAmount : int
     songIndex : int

    ClearArray(SongNames)
    if InSetlistView() then
        songsAmount = GetSongCount()
        ClearArray(SongNames)
        for songIndex = 0; songIndex < songsAmount; songIndex = songIndex + 1 do
            SongNames <-- GetSongName(songIndex)
        end
    end
End

Function BubbleSort(arr : string Array)
    var
     i, j : integer
     s : string

    for i = 0; i < Size(arr) - 2; i = i + 1 do
        for j = 0; j < Size(arr) - 2 - i; j = j + 1 do
            if arr[j] > arr[j + 1] then
                s = arr[j]
                arr[j]  = arr[j + 1]
                arr[j + 1] = s
            end
        end
    end
End

Function GetOrder(songIndex : integer) returns string
    result = IntToString(songIndex + 1) + "/" + IntToString(Size(SongNames)) + ": "
End

Function ShowLabelWidgets(show : boolean)
    var hide : boolean = not show

    SetWidgetHideOnPresentation(LabelMinusTwo, hide)
    SetWidgetHideOnPresentation(LabelMinusOne, hide)
    SetWidgetHideOnPresentation(LabelActive,   hide)
    SetWidgetHideOnPresentation(LabelPlusOne,  hide)
    SetWidgetHideOnPresentation(LabelPlusTwo,  hide)
End

On WidgetValueChanged(newValue : double) from SongSelectorKnob
    var
     songsAmount : int
     songIndex : int

    FillSongNamesArray()
    BubbleSort(SongNames)
    songIndex = Round(newValue * (Size(SongNames) - 1))
    ShowLabelWidgets(True)
    SetWidgetLabel(LabelMinusTwo, if songIndex < 2                   then "" else GetOrder(songIndex - 2) + GetSongName(songIndex - 2) end)
    SetWidgetLabel(LabelMinusOne, if songIndex < 1                   then "" else GetOrder(songIndex - 1) + GetSongName(songIndex - 1) end)
    SetWidgetLabel(LabelActive,                                                   GetOrder(songIndex    ) + GetSongName(songIndex)        )
    SetWidgetLabel(LabelPlusOne,  if songIndex > Size(SongNames) - 2 then "" else GetOrder(songIndex + 1) + GetSongName(songIndex + 1) end)
    SetWidgetLabel(LabelPlusTwo,  if songIndex > Size(SongNames) - 3 then "" else GetOrder(songIndex + 2) + GetSongName(songIndex + 2) end)
    SetWidgetHideOnPresentation(SelectSongButton, False)
End

On WidgetValueChanged(newValue : double) from SelectSongButton
    var
     songsAmount : int = Size(SongNames)
     songIndex : int = Round(GetWidgetValue(SongSelectorKnob) * (Size(SongNames) - 1))
     songSelected : boolean

    if InSetlistView() and newValue > 0.5 then
        songSelected = SwitchToSongByIndex(songIndex, 0)
        ShowLabelWidgets(False)
        SetWidgetHideOnPresentation(SelectSongButton, True)
    end
End

What the script does is:

  • Reading the song names of the current set list
  • Sort the titles
  • When the SL3 button is changed, the list with songs is shown on the right of the global rackspace and shows the to be selected song and the 4 surrounding songs. Also the selector button is shown.
  • When the selector button is used, the song is activated and the button and song list in the global rackspace are hidden.

Note that on my gigging PC, I added a bit of code that the slider knob only activates the button and song list when the value is < 10 to prevent an accidental slider event in case of a wobbly keyboard (stand).
Also while reading in the songs, I ignore songs starting with * as I typically use those for *SET 1, *SET 2, *ENCORE etc, which are never needed to be selected directly, making the range on the knob (or slider in my gig’s version) a bit bigger.

Gig file

SImpleSongSelector.gig (118.4 KB)

Also see

Also see the related post Converting Program Changes to Prev/Next song

If you are looking for a very fancy song selector, check out this video for a Gig Performer extension created by @DaveBoulden.

https://www.bing.com/videos/riverview/relatedvideo?q=song+selector+dave+boulden&mid=A098413242A3E6CD7589A098413242A3E6CD7589&FORM=VIRE
