Route Pitch Bend Wheel to Modulation Effect?

One weakness of both of my keyboards (preexisting) is lack of a decent mod wheel (there is actually a mod “button” on the CTK-7200 and only a pitch bend on my PX350 (that makes more sense since it is mostly a digital piano)).

So, I was just thinking. I know I can route modulation (cc1) to a midi fader (I have 9 of them).

But, I just thought, if I really want to use the “wheel” controller to control modulation, should I be able to remap the CTK-7200 pitch bend so it effects cc1 (whatever is set for modulation based on the synth) using GP? [I know I would then not able to use it separately for pitch if I did that].

Actually, could I set up pitch bend controller for any parameter within GP? (Or am I missing something).

Thx!

Remap it in the midi filter plugin

1 Like

I think I read about that somewhere…

Actually, I would think I would do it within specific MIDI IN blocks since I would not want change it everywhere (I would lose pitch bend, etc.).

You could use pizmidi midiConverter3.
This plugin is deprecated but still works correctly, I’ve just tested it.
You could add a widget to bypass it when you want to revert to pitchbend mode.

I was actually looking at this a few years ago when I purchase the Native Instruments S-88 controller (1st version) that only had the ribbon controllers for pitch and modulation.
Big mistake for live performance :roll_eyes:.

Unfortunately they are a Russian company and do not ship overseas at the moment… :woozy_face:
This was not the case when I was looking at it. It was $130US when I inquired…

Don’t know if there are other hardware alternatives to this. I found it interesting, but did not purchase it.
The wheels and knobs can be assigned to any midi CC#.

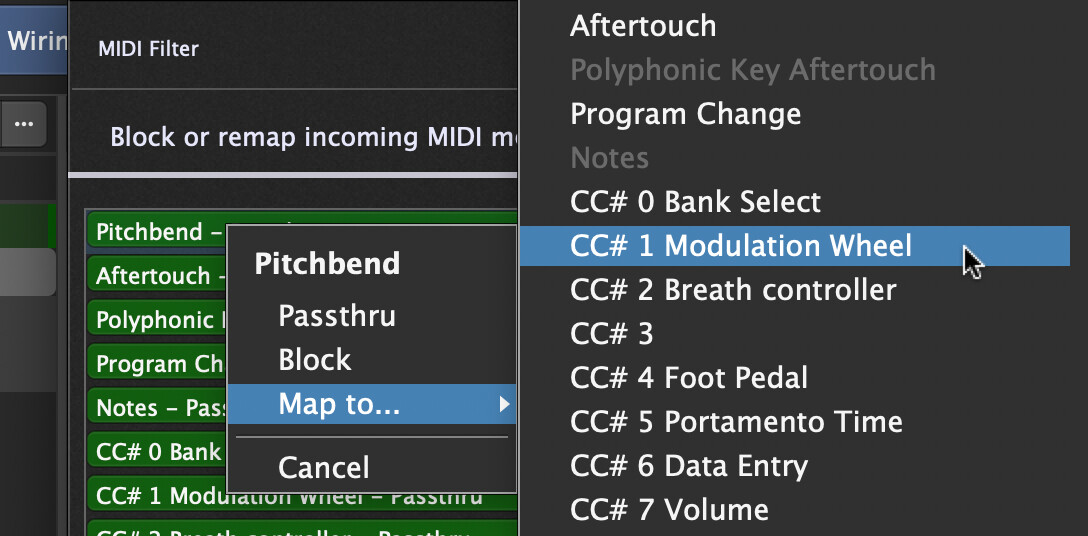

It’s the inbuilt GP Midi Filter block.
Right click one message → map to another. Bypass this block with a widget when you don’'t want it active.

2 Likes

I had completely forgotten about it and how the pitchbend (or whatever) could be mapped.
Thanks @rank13 for the refresher.
