Rig Manager Emergency

General discussion about Gig Performer
21

I have no choice - or Ill get drop outs.

Widi sucks. Now I have to actually go in to each song and remap keytar to the 61. and THEN keep the widi for the remote keyboard -

at least that will keep things separate going forward and if I get a keytar back in the mix - it will be with Pandamidi - and separate.

does that make sense?

Im only 36 songs in…

22

Thanks Paul - no sure how to diagram it here but let me provide context:

1 - Hardwired 88 key controller into computer.
2 - Keytar using widimaster transmitting to WidiBud (which is plugged in computer)
3 - Minilab 3 using widijack transmitting to the same WidiBud

23

Ok, so gig performer cannot see where midi comes from.
It only sees widi bud.
That is a suboptimal design you built.

1 Like
24

Correct - so Im going in now and changing all of the wiring from Widi Bud to a single 61 key channel - and Ill wire widi bud remote keyboard as a separate thing.

then I can always figure out the keytar system separately and then make a quick change when ready

25

I’ve been trying for a while to get CME to create virtual midi ports for each connected controller, but so far I haven’t been able to motivate them.

26

Have I missed something, I have not used WIDI devices? The channels mechanism in MIDI was designed to allow multiple devices to communicate on the same cable. Can you not separate the devices by assigning channel number? This way you can easily identify the source in GP?

27

I cannot speak for @jweisgal, but yes of course you can distinguish the controller using a different MIDI channel. But it is quite boring when changing to different controllers like I do in our rehearsal studio. Each time you have to figure out to change the MIDI channel of a controller that you don’t know well. And when you want to use Rig Manager things are not straightforward, as in Rig Manager controllers are distinguished by a different MIDI port and not a different MIDI channel.

28

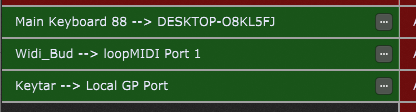

As @David-san points out swapping controllers in Rig manager is tricky as they are not channel based, but there is a workaround that may help you. By adding a second alias using the Local GP Port. I have used loopMIDI to demonstrate the WIDI input stream.

image416×112 12 KB

Then adding these few lines to gig script, the channel 2 messages are routed via rig manager on a new Alias (assuming your keytar is on channel 2).

const KEYTAR : Integer = 2

var Widi_Bud : MidiInDeviceAlias
var Keytar : MidiInDeviceAlias

On MidiEvent(m : MidiMessage) from Widi_Bud
    If GetChannel(m) == KEYTAR Then
        InjectMidiEventViaRigManager(Keytar,m)
    Else
        InjectMidiEventViaRigManager(Widi_Bud,m)
    End
End

You should now have the best of both worlds.

Edit: I have amended the names in the Rig Manager and Gig Script to more closely match your names. NOTE, the underscore used in the name Widi_Bud to allow the scripting to identify the MIDI device correctly.

Edit: Use MidiEvent to make things very easy.

1 Like
29

@Spav, this is exactly what I was referring to when I said “not straightforward” and why I’d like CME to create one virtual MIDI port per connected controller. In the meantime I’ve put a WIDI UHost per WIDI Jack, which makes it possible to have (at greater expense) one MIDI port per controller. Fortunately, as you illustrate perfectly, with GP and a good Gig Script you can correct many of the problems encountered with controllers. But every time you have to scratch your head. My keytar, for example, depending on the patch selected, sends on several MIDI channels. A little effort from CME would really help…

By the way, any reason you didn’t use the On MidiEvent callback in you Gig GPScript ? :thinking:

30

A bit of thought is quite often much cheaper (and more fun) than swapping out hardware and when eventually done correctly, is usually only done once.

None what so ever, other than old age and 2:30am!!!

2 Likes
31

Seems a long winded way to do things. Or you could just use a WIDI Jack powered via a small power bank.

32

So here is an interesting update - I switched from the Casio az-1 over to Roland’s ax-edge - and so far nothing is hanging

I think the difference is that I used to use fresh batteries all the time and it was giving the Casio enough juice for 2 hours.

The Roland seems to work better
