trying to make Acoustic Guitar sound full yet not washed out. (Ducking ?) or Gated Reverb sounds like the thing to do.
Any guitar players familiar with this please post a wiring view of this kind of setup.
Try iZotope Cascadia or Zynaptiq Adaptiverb
good suggestions however I have plenty of plugins, I’m just looking for a diagram on HOW its routed. Once I see how the routing is, I can try different plugins. Currently testing with:
Kilohearts or [MeldaProduction plugins.
Whether you run things in series or parallel is up to you. Each method has its merit, its just about what sounds right to you.

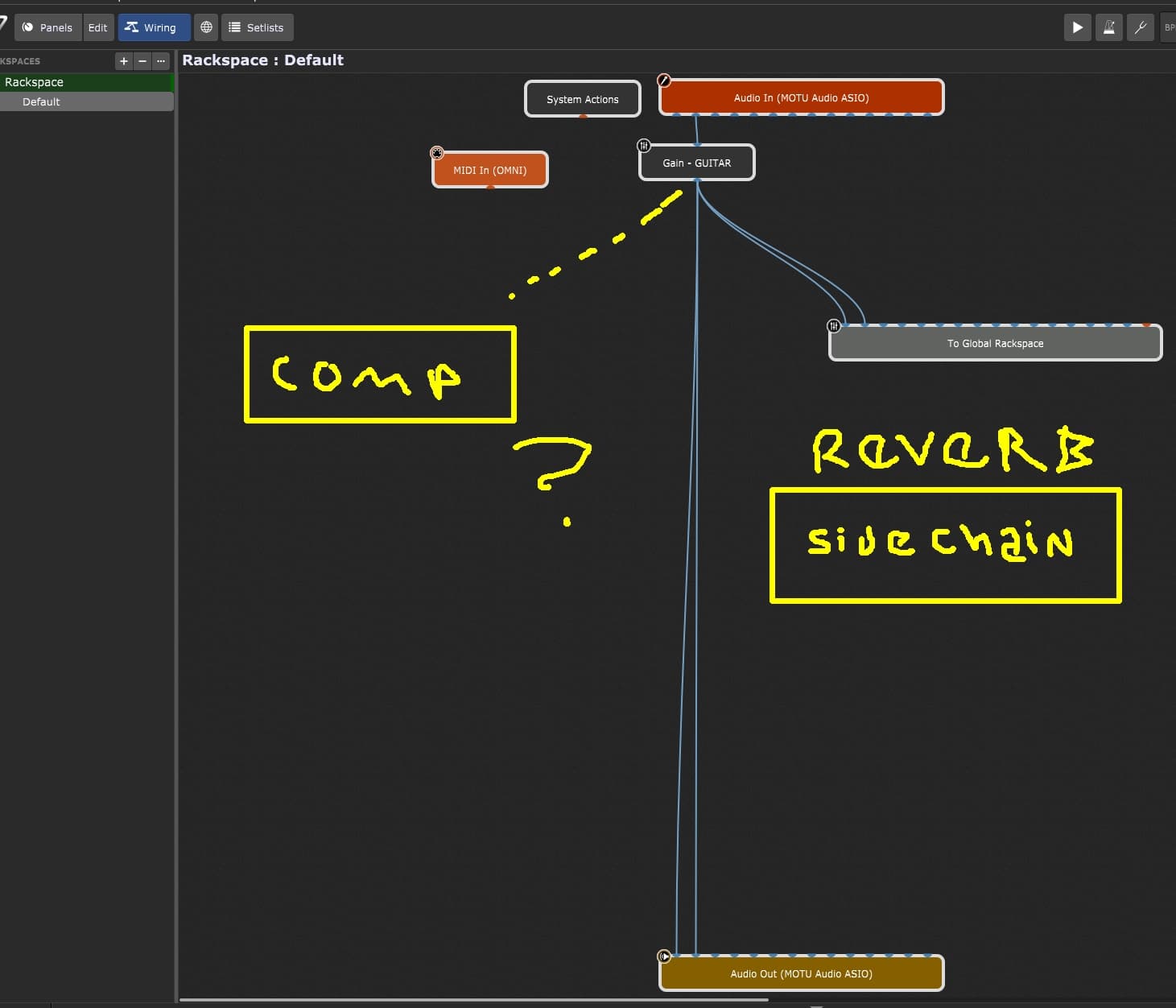

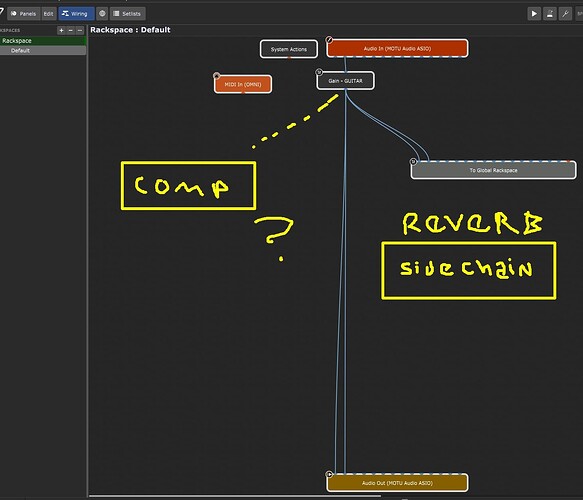

I agree. It would like to see the connections. In the form of an image. perhaps a jpg.

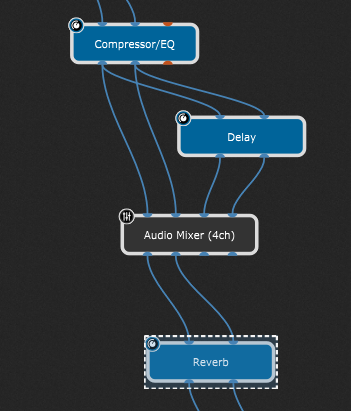

I personally like this basic config for acoustic or piezo guitar:
Reverb is set ~ 2 seconds with ~15% mix.
Delay is 1/8th note, ~ 25% feedback, and only ~10% mix.
The limited amount of delay and reverb just there to help thicken the sound without washing it out.
1 Like
exactly what i was looking for ~ Thanks
1 Like

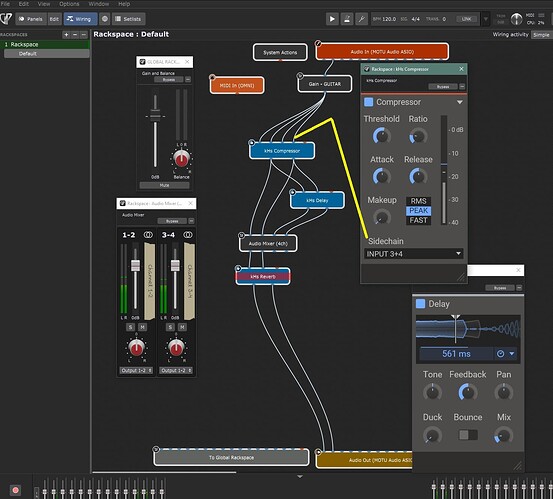

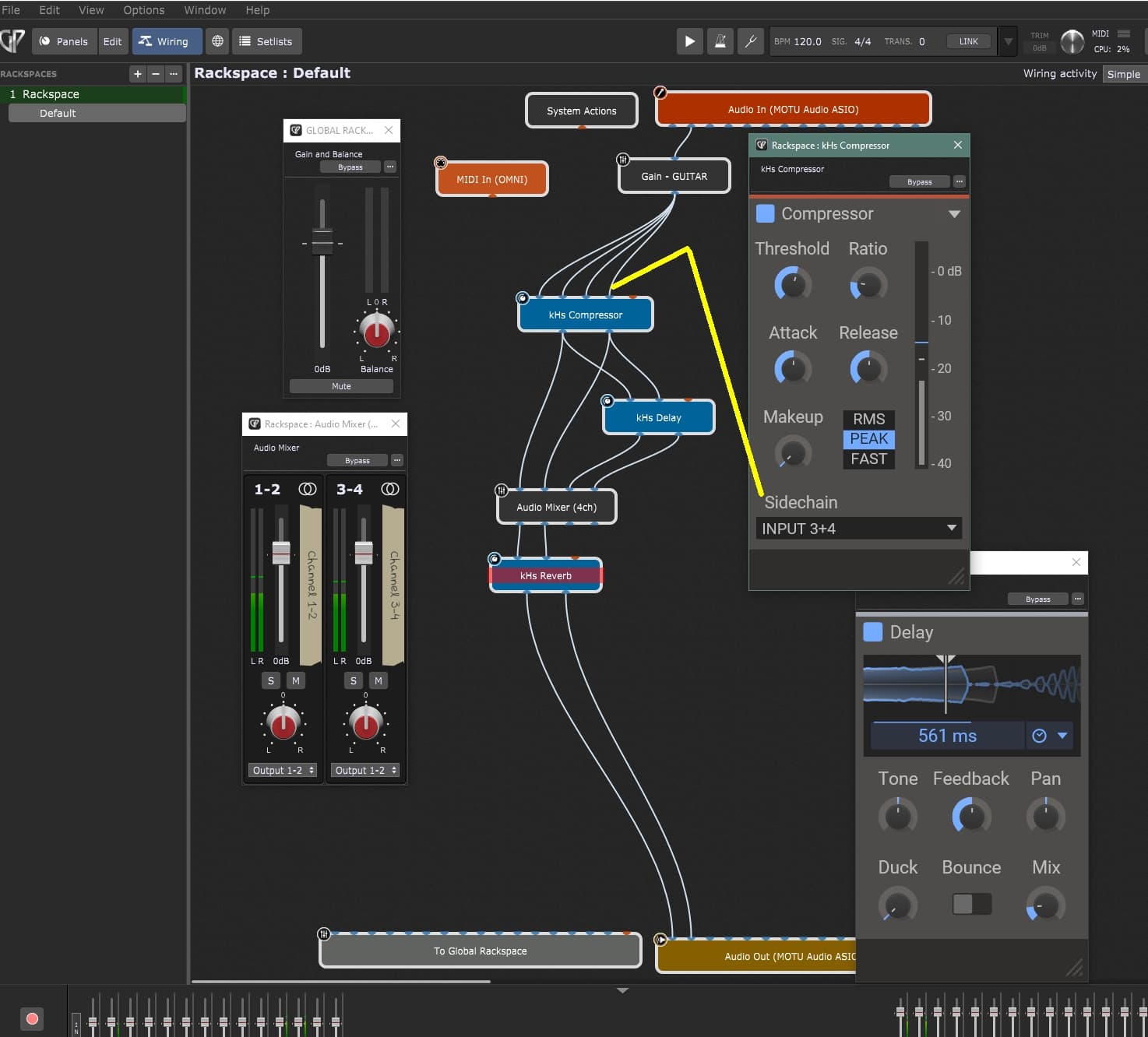

in this setup the Delay sidechain is 3-4. However Delay. is playing even when sidechain is off or not connected.
what Comp EQ are you using?
It’s only a stereo output on the compressor, so the delay and direct are getting the same signal.
I actually use a very old free plugin that was designed for shaping bass guitar but is a true secret weapon for acoustic/piezo guitar. I only need to use the EQ controls, it provides such an amazing boost.
2 Likes

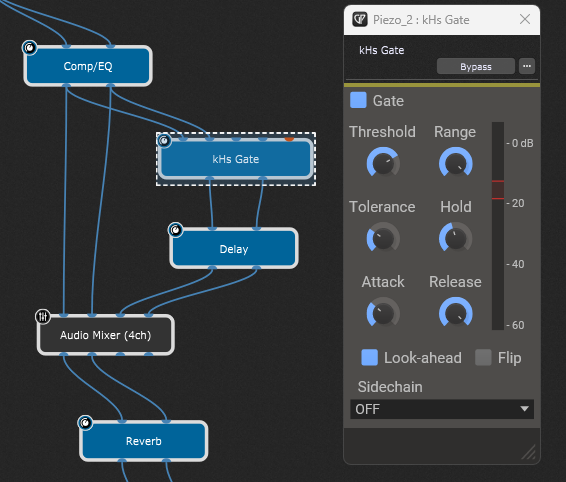

If you only want the delay to get signal on the more percussive strikes, then use a gate before the delay, with a high threshold and long release time.
1 Like
Not a guitar player, but in my saxophone setup I use sidechain compression to duck the reverb while I’m playing and have it come up at the end of phrases. It adds clarity without losing the big reverb tails.
You need a compressor with sidechain input and you have to put your reverb in parallel (Set to 100% wet)

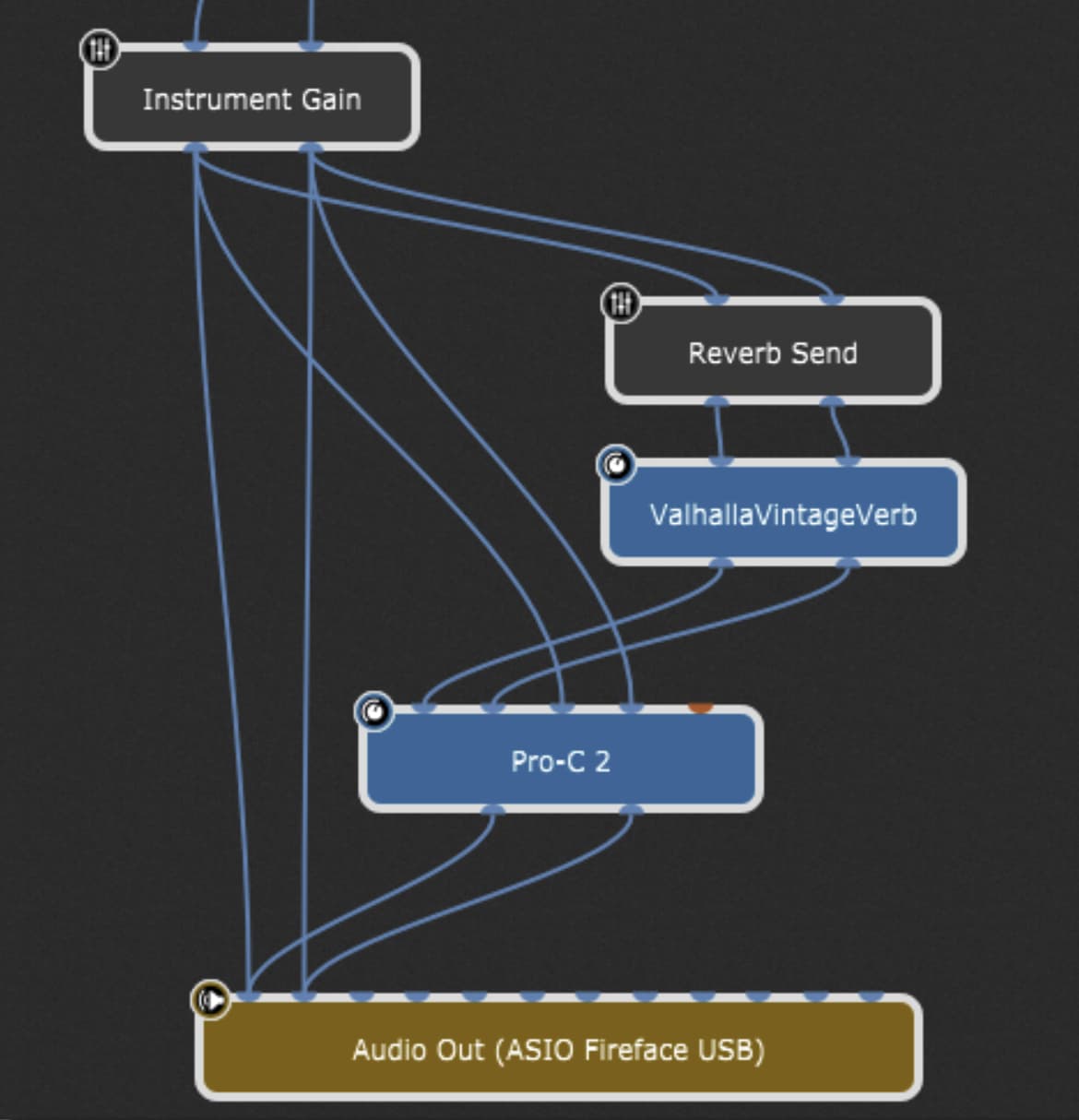

the wiring looks looks like this.
I go for a 4:1 ratio, fast attack, medium to slow release time and about 4db gain reduction. If you overdo it, it sounds unnatural.
1 Like
sidechain compression to duck the reverb
this great…!

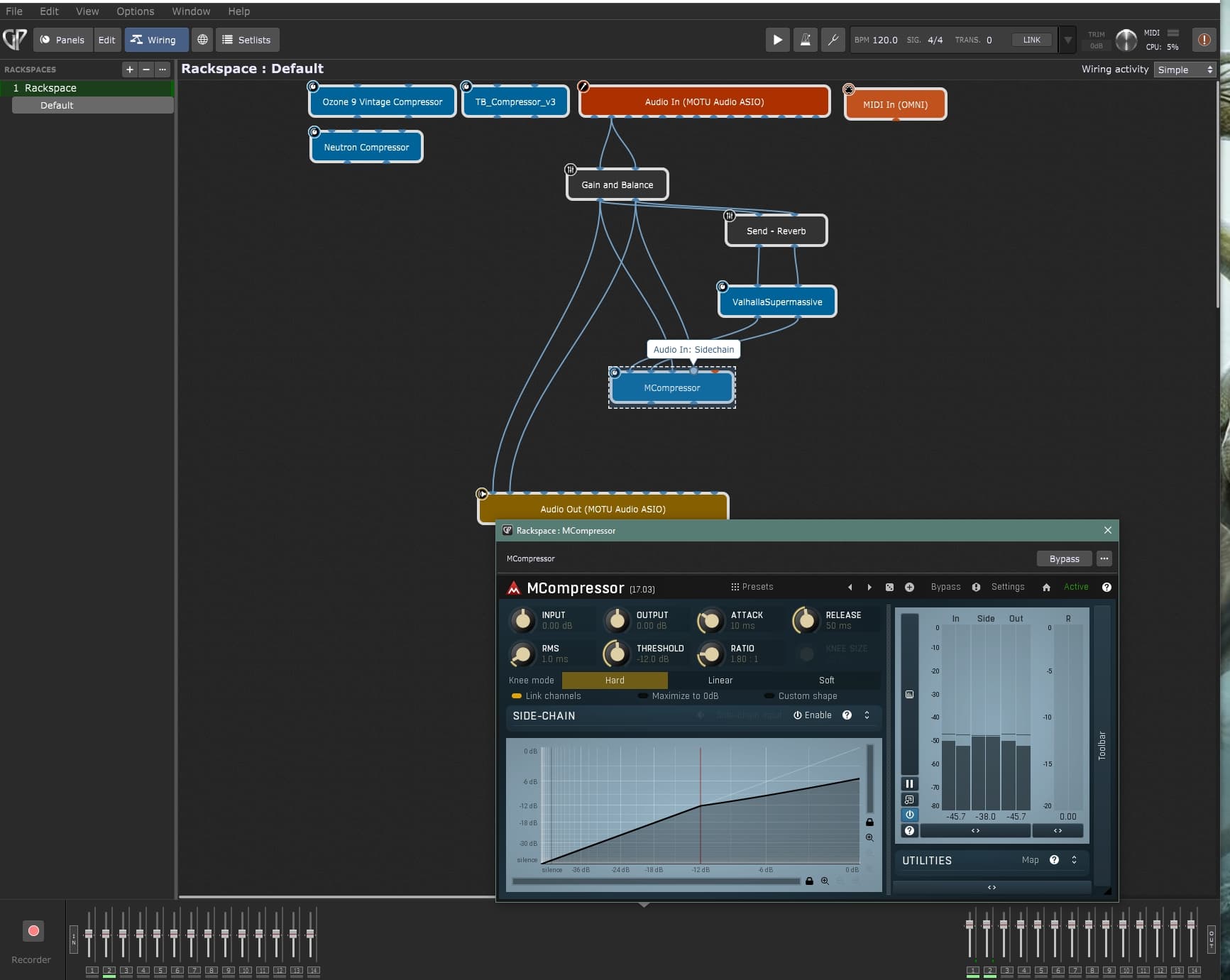

I found one compressor clearly marked “side-chain” MCompressor.
- What is considered a Fast attack / Slow release?
- some compressors have additional “Aux Inputs” are those the same as side-chain?
I wanted to change the title of this post to include" Estas Tonne" That is the type of live reverb / compression I was trying to describe.
Start with the fastest attack setting of your compressor, so your reverb is immediately compressed once you start playing. Set your release time to something like 200-500ms to allow the reverb volume to come up gradually. You don’t want the reverb to pop in and out (like a gated reverb would)
If the effect is to noticeable, lower the threshold and/or the ratio and vice versa.
1 Like
