Hey,
I just created my first script and I’m a little proud to show it to you, even though there is one problem left I couldn’t fix.

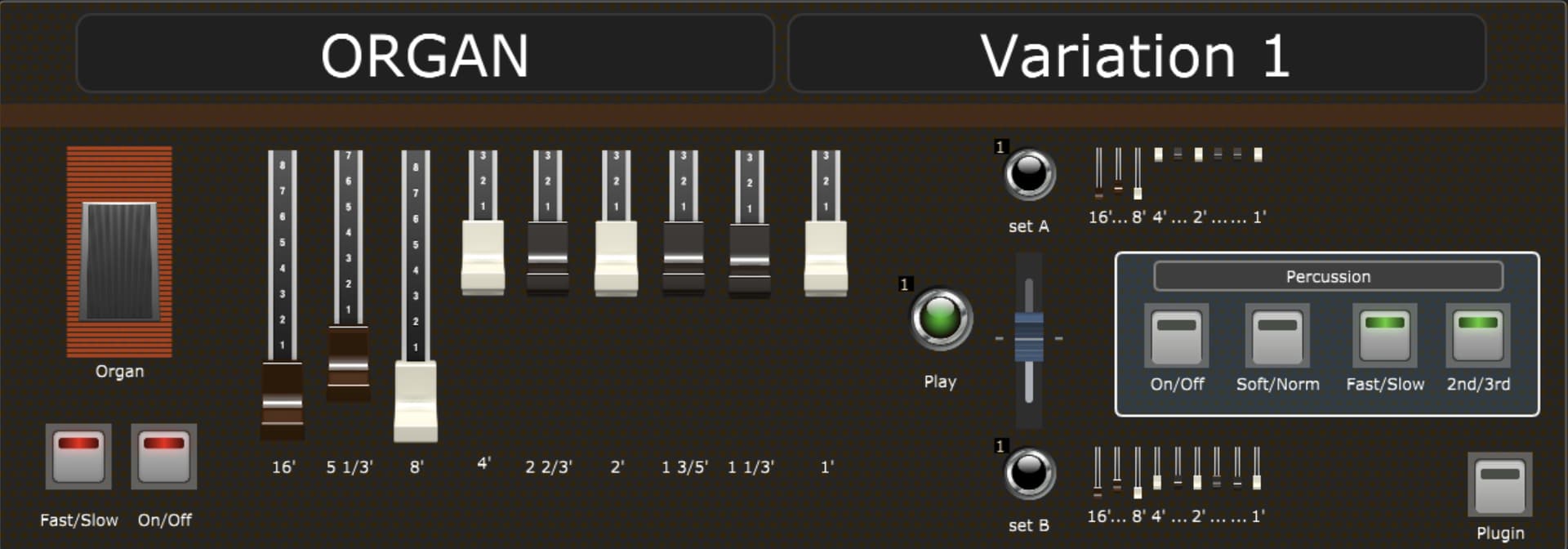

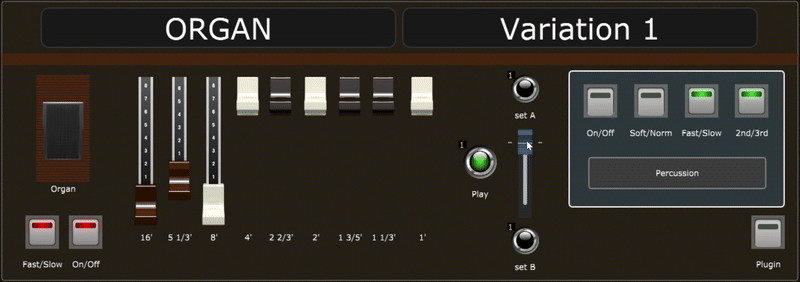

With the script you can store 2 different drawbar settings and then morph between those with a fader (or modwheel). Pretty convenient, if your midi keyboard has no faders.
(The script is based on the “Relative movement”-script - thank you @schamass!)
Feel free to test it and share your experience using it.
Organ Morph Script.rackspace (390.9 KB)
The remaining problem is, that the drawbar positions of Set A and Set B aren’t stored when reopening the gigfile. Is there a solution to store these without having 2 more sets of hidden drawbar widgets?
// the widgets used
var fdr1, fdr2, fdr3, fdr4, fdr5, fdr6, fdr7, fdr8, fdr9 : widget
var button_A, button_B, button_Play, button_Copy : widget
var morph_fdr : widget
//the arrays used
faders : widget array = [fdr1, fdr2, fdr3, fdr4, fdr5, fdr6, fdr7, fdr8, fdr9]
fdr_buffers : double array = [1.0,1.0,1.0,1.0,1.0,1.0,1.0,1.0,1.0]
fdr_last : double array = [1.0,1.0,1.0,1.0,1.0,1.0,1.0,1.0,1.0]
faders_A : double array = [1.0,1.0,1.0,1.0,1.0,1.0,1.0,1.0,1.0]
faders_B : double array = [1.0,1.0,1.0,1.0,1.0,1.0,1.0,1.0,1.0]
// user function to store the actual fader position into an array
function calc_buffers ()
var i : integer
for i=0; i<Size(fdr_buffers); i=i+1 Do
fdr_buffers[i] = GetWidgetValue (faders[i])
end
End
// user function to set the fader_A positions
function set_faders_A ()
var i : integer
for i=0; i<Size(faders_A); i=i+1 Do
SetWidgetValue(faders[i], faders_A[i])
end
End
// user function to set the fader_B positions
function set_faders_B ()
var i : integer
for i=0; i<Size(faders_B); i=i+1 Do
SetWidgetValue(faders[i], faders_B[i])
end
End
// user function to interpolate between position A and B
function morph_faders ()
var i : integer
for i=0; i<Size(faders); i=i+1 Do
SetWidgetValue(faders[i], faders_A[i]*GetWidgetValue(morph_fdr)+faders_B[i]*(1-GetWidgetValue(morph_fdr)))
end
End
// if button_A pressed, then set all faders to the stored positions A
On WidgetValueChanged (bval : double) from button_A
If GetWidgetValue(button_A) == 1.0 Then
set_faders_A ()
SetWidgetHideOnPresentation(button_Copy, false) // un-hide button_Copy
end
End
// if button_B pressed, then set all faders to the stored positions B
On WidgetValueChanged (bval : double) from button_B
If GetWidgetValue(button_B) == 1.0 Then
set_faders_B ()
SetWidgetHideOnPresentation(button_Copy, false) // un-hide button_Copy
end
End
// if button_Play pressed, then set all faders to the morphed positions
On WidgetValueChanged (bval : double) from button_Play
If GetWidgetValue(button_Play) == 1.0 Then
morph_faders ()
SetWidgetHideOnPresentation(button_Copy, true) // hide button_Copy
end
End
// stores every fader movement depending on Play/Set A/Set B
On WidgetValueChanged (fval : double) from fdr1, fdr2, fdr3, fdr4, fdr5, fdr6, fdr7, fdr8, fdr9
If GetWidgetValue(button_A) == 1.0 Then
calc_buffers ()
faders_A = fdr_buffers
Elsif GetWidgetValue(button_B) == 1.0 Then
calc_buffers ()
faders_B = fdr_buffers
Else calc_buffers ()
fdr_last = fdr_buffers
end
End
// if morph fader is moved, it interpolates between position A and B
On WidgetValueChanged (fval : double) from morph_fdr
If GetWidgetValue(button_Play) == 1.0 Then
morph_faders ()
end
End
//Copy last fader positions in play mode to current set mode
On WidgetValueChanged (bval : double) from button_Copy
If GetWidgetValue(button_A) == 1.0 Then
faders_A = fdr_last
set_faders_A()
Elsif GetWidgetValue(button_B) == 1.0 Then
faders_B = fdr_last
set_faders_B()
end
End
// will be executed on first use of the rackspace (or on compile)
Initialization
End
Also, I’m sure there is a way to program it more compact, but it’s my first script - feel free to optimize it!
Thank you!
