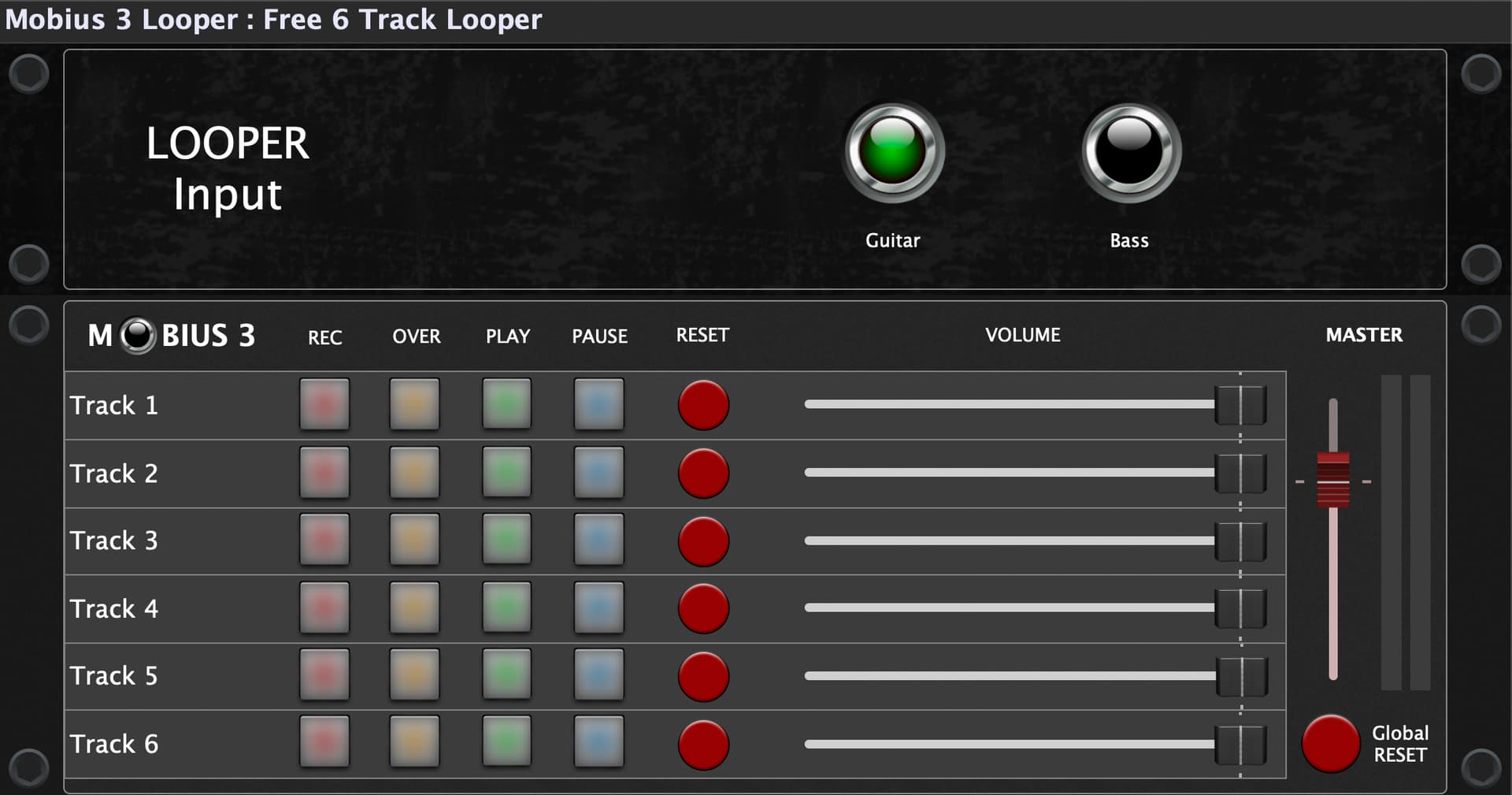

A simple Rackspace to control the Mobius 3 Looper (in my example for 6 Tracks).
Please use the VST3 plugin version for MIDI control.

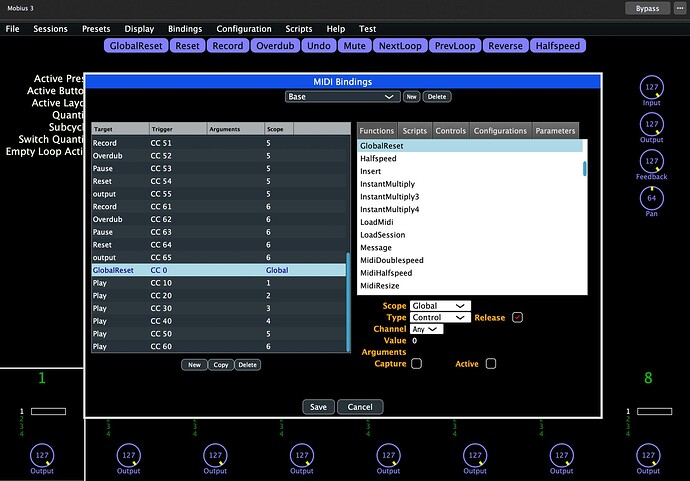

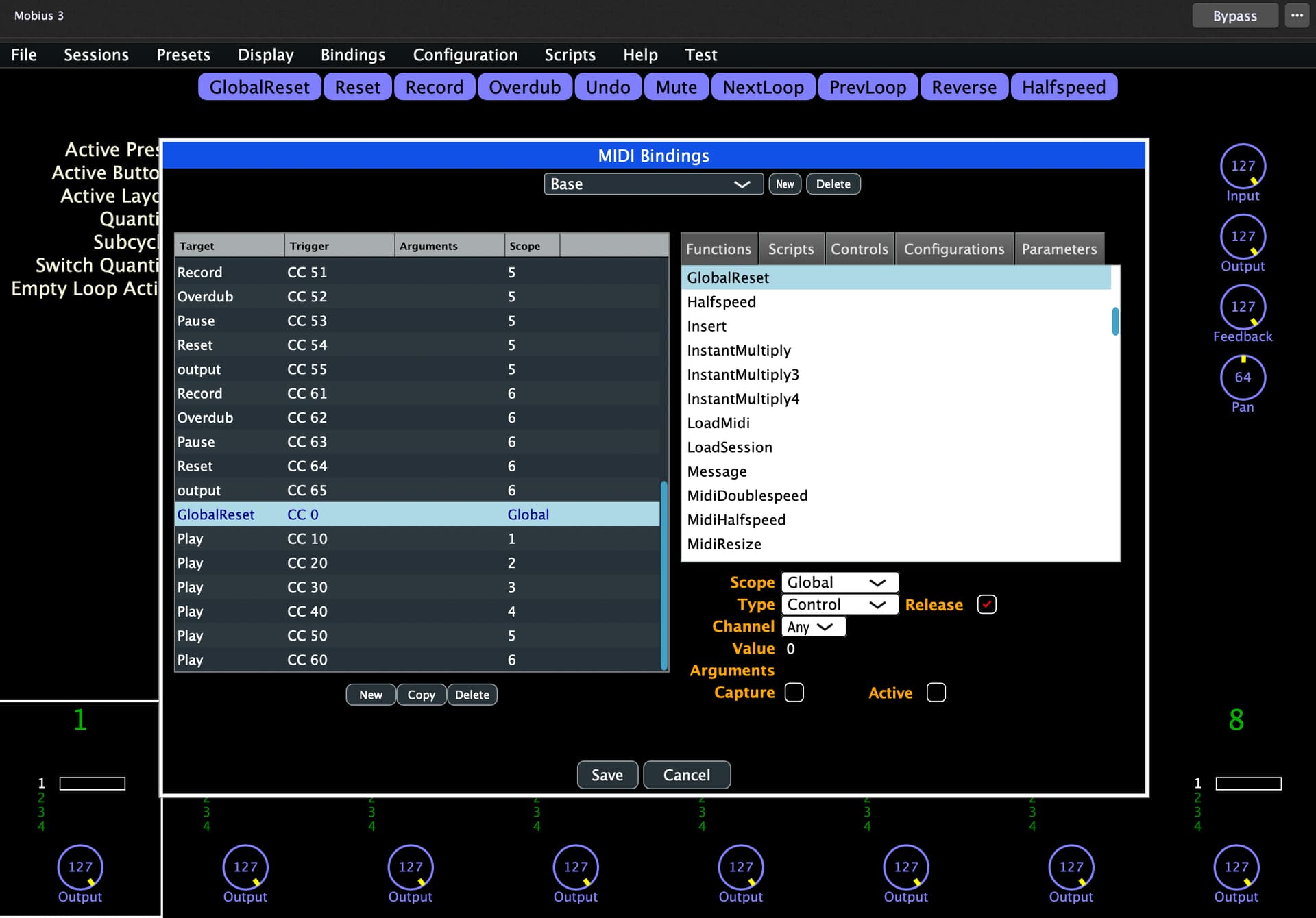

Bindings in Mobius - for Track 1: Play = CC10, Record = CC11, Overdub = CC12, Pause = CC13, Reset = CC14, Output = CC15
same for Track 2 = CC20, CC21, CC22 … CC25
for Track 3 = CC30, CC31, CC32 … CC35 etc.
GlobalReset = CC0
select on each Release and Active!

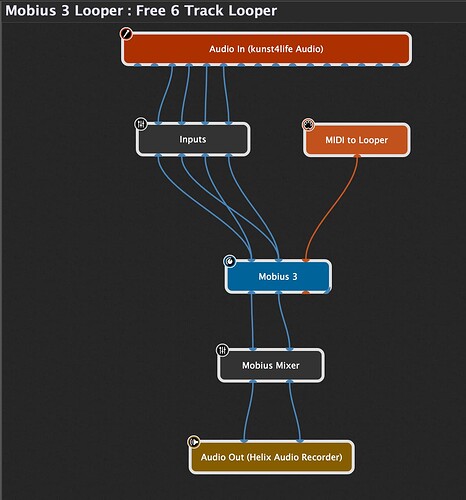

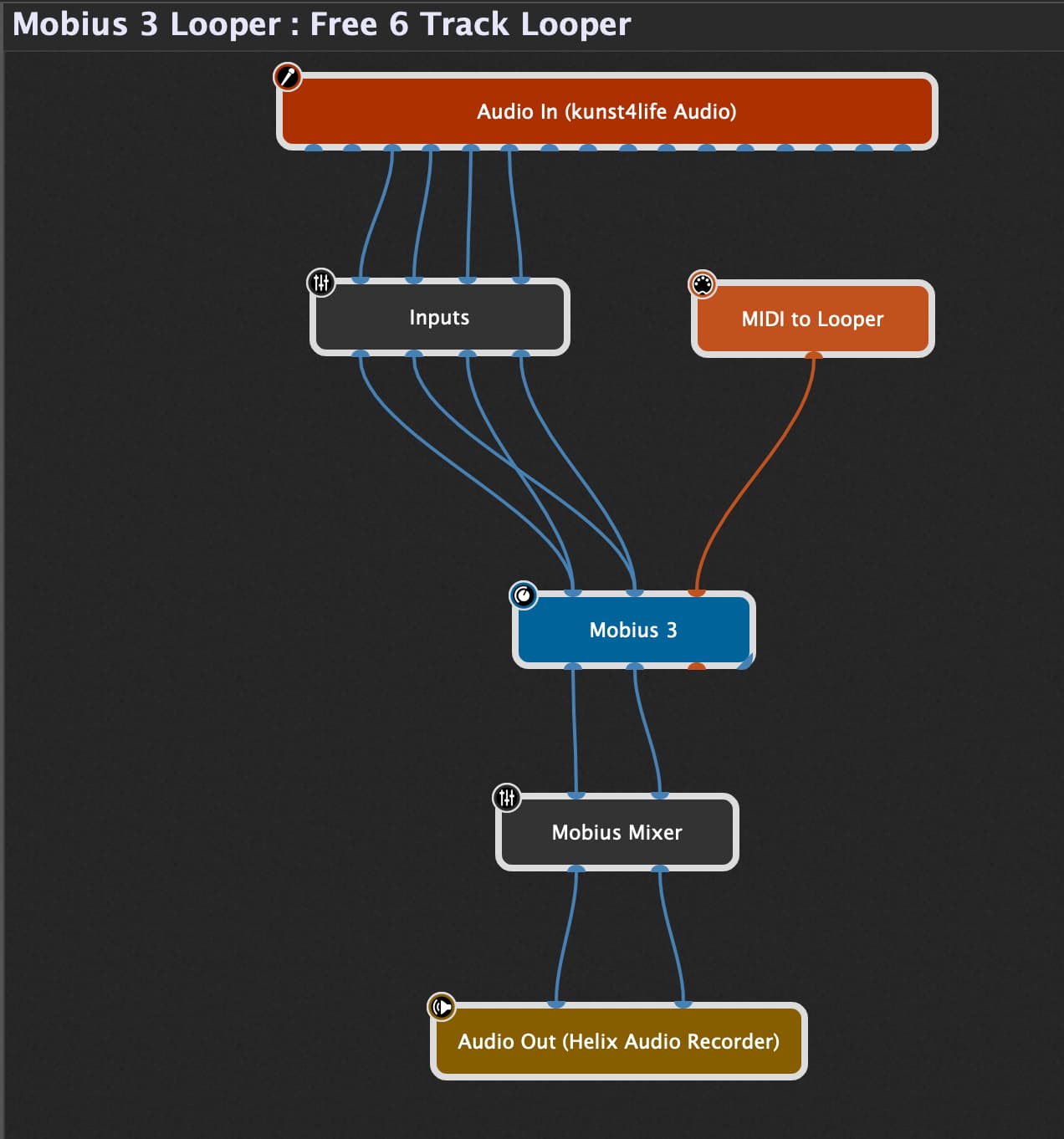

GP Wiring - example with 2 input sources. Why external MIDI IN Block, it’s needed for a working Radio-Button function.
The GP rackspace file for download:
Mobius 3 Looper.rackspace (735.5 KB)
Have fun! bye Harry
9 Likes
@kunst4life Hi Harry. I’m glad I came across this post since I downloaded Mobius, but I couldn’t get far with mapping it to my Morningstar MC6 Pro.
At this point I’m only trying to get the mapping of the Record button to work. That would be a start. GP and the MC6 do communicate (the MIDI monitor in Mobius shows that and if I assign the MC6 switch that I’m trying to map to Record to the Bypass parameter, Mobius does bypass), but I can’t figure out how to get Record to respond or trigger.
One thing I’m wondering is that though you wrote that, on track 1, Record = CC11, in the widget parameters window of Mobius the numbers are different, with 2 numbers separated by a slash, like 0/1, 0/2, 0/3. I’ve never seen those as CCs apart from plugins that use banks and presets where 0 can be a bank and the next number a preset, but anyway, I can only conclude that CC11 corresponds to “14 - MIDI CC 0/11” in the parameters list. But maybe I’m wrong ?
sorry @Bernarada in 12 days I’ll get back to you. For now, I’m performing seven shows (can’t change my setup). After that, I’ll look at your question, all right? Bye for now, Harry.
2 Likes
@kunst4life OK, thanks. Enjoy the shows.
@Bernarada A quick solution might be to use my Rackspace and map your controller with my buttons. Does that work? This would give you visual control.
@kunst4life That’s what I’ve been doing. I could get at a point where the Record button would react to my controller, but nothing happened in Mobius. If you would have also shared how you configured it, that would’ve been useful too. I bet some settings in it have to be addressed. I’ll keep exploring and experimenting. Thanks for dropping in.
