MIDI Player Loop issue

Hello again,

I intend to use GP to play a few midi files from time to time (audio as well) and I would like to loop the midi files. I have created a basic pattern in logic and saved as a midi file. I then add a midi player block to GP as assign that file. The issue I am having (with several different files) is that there is a skip delay in the loop. Meaning the loop plays, there is a short pause, then it starts again. Any idea what I am doing wrong here? Maybe some midi message issue (failure to grab that first note on or something?).

As a workaround I have just made the midi file huge (30 measures) and just hold the key down until I’m done, but I’d prefer a true loop if possible.

Loving this program however, it’s the only thing I’ve found that can go toe to toe feature-wise with the Kronos.

What is the actual length of the MIDI file? Can you upload it?

It’s just two bars long. In one case it’s the main riff for “take my home tonight” by Eddie Money. There is a section later in the song where there is the main riff, the accent stabs and a pad all going at once. For ease, I want to have that main riff sequenced (2 bars) on a loop so I can use my two hands for pad and stabs.

Not sure where I would upload for viewing, but I am willing. It’s pretty simple.

How did you set the loop in midi file player?
Can you post a screenshot?

No, that is what you THINK it is…. but without seeing the actual file, I can’t tell. Please upload the midi file.

1 Like

Thanks so much. It looks good to me but must have something going on here.
Take me home.zip (275 Bytes)

Definitely two bars and it plays/loops just fine - see video. That said, I’m not sure why the player claims it is 13 bars long - that’s a bug. We’ll look into that.

Ack, it got cut off. please hold…

So here is what is happening on my system. I tried different instruments too. Any ideas?

Yours plays in a different key than the one @dhj posted…a half step higher I believe.

Oh yeah, I have global transpose on as this project will be playing everything a half step down (super slick to handle in GP btw). Shouldn’t impact the loop however, right?

What version of GP are you running?

4.5.8.

Oh and: Mac Mini late 2012, i7 16g ram, Catalina 10.15.7. Not a pumper yet, just a “proof of concept” machine as I work on Kronos replacement path.

Depends on how the midi file was saved. If it was saved with between “start” and “end” markers and the “end” marker was set to the 13th bar, it would be seen by the MDP as 13 bars even if the actual midi was only 2 bars long.

Yes, analyzing it with some tools, there is an end of track meta event at bar 13

1 Like

Ahh good to know. So I went into the file and found that marker and deleted it, but it’s still showing that 13:0 end point and still skipping at the end. I wouldn’t think that the existence of data past the loop point would affect the loop itself though right? I have tried recreating the loop from a brand new track and the 13 persists, so maybe that’s a midi track default or something in Logic? Just trying to find out a way to make basic loops that I can use when needed. What am I doing wrong? lol.

Have you tried different plugins? When the midi file loops it is sending All Notes Off and All Controllers Off messages. So maybe different plugins are handling this differently. I get a pause with Blue3 when it loops, but not with some others I’ve tried.

If you can, edit your midi file to send its All Notes Off message at the very end of the clip just before the start of the next bar. For instance, at position 2.4.99 instead of 3.1.00.

The file end is at 13 bars. I think GP is generating the All Notes Off (I have an app to look at the file contents).

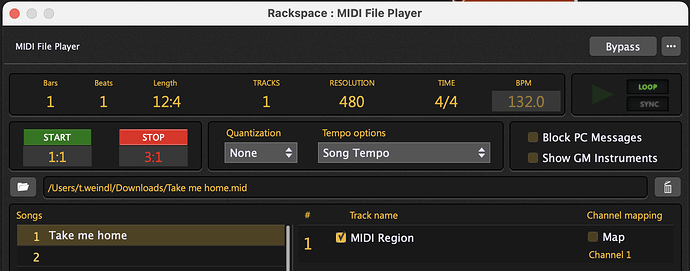

With this setting it loops correctly, so what is the issue?
