Just finished my Guitar Rig :)

Just wanted to show off my guitar rig that I have made.
Sennheiser EW-D wireless guitar
Scarlett Solo 3rd Gen
Mac Mini M4

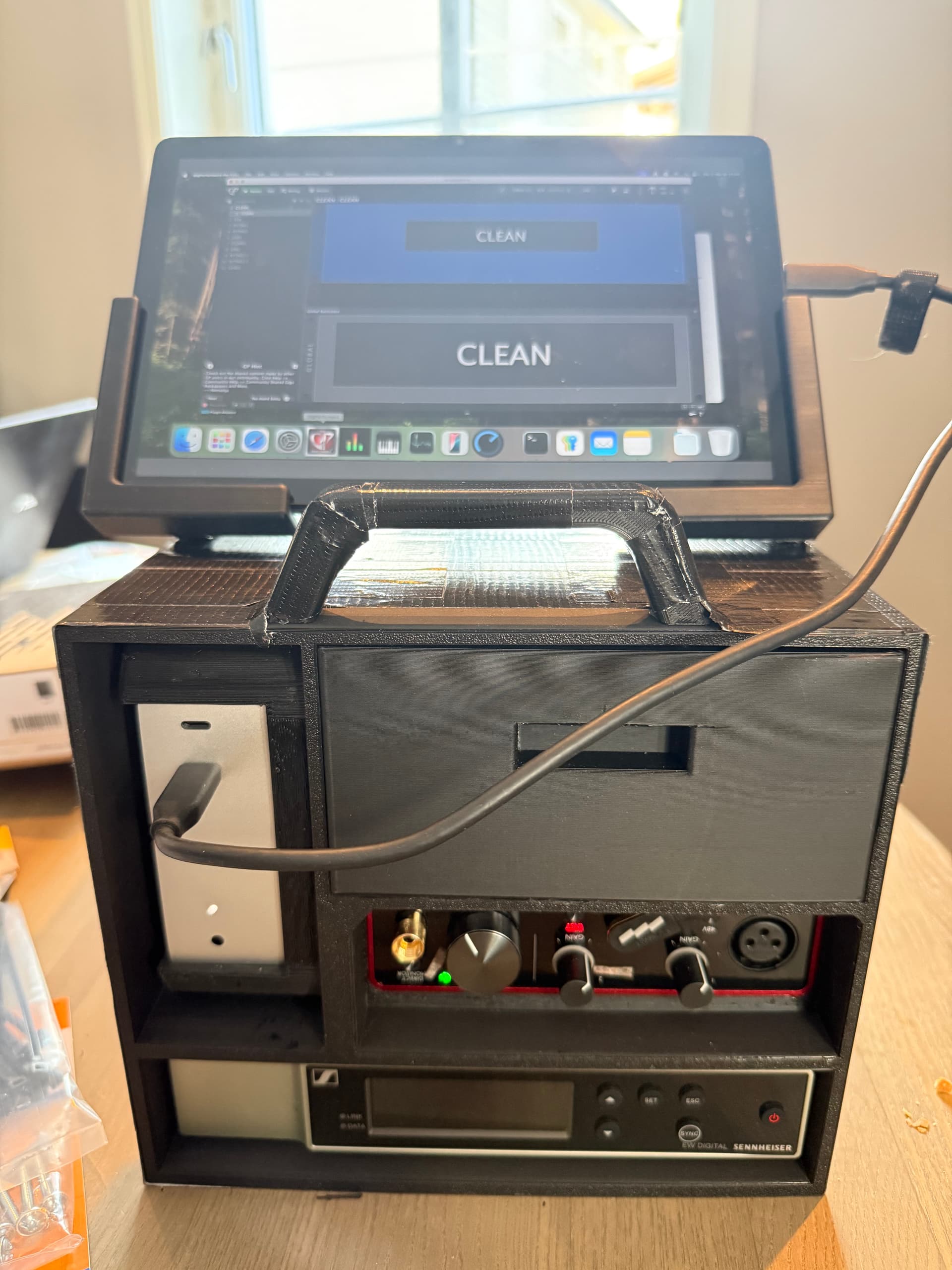

Lenovo M10 3rd gen with Duet Display (Headless mac mini)

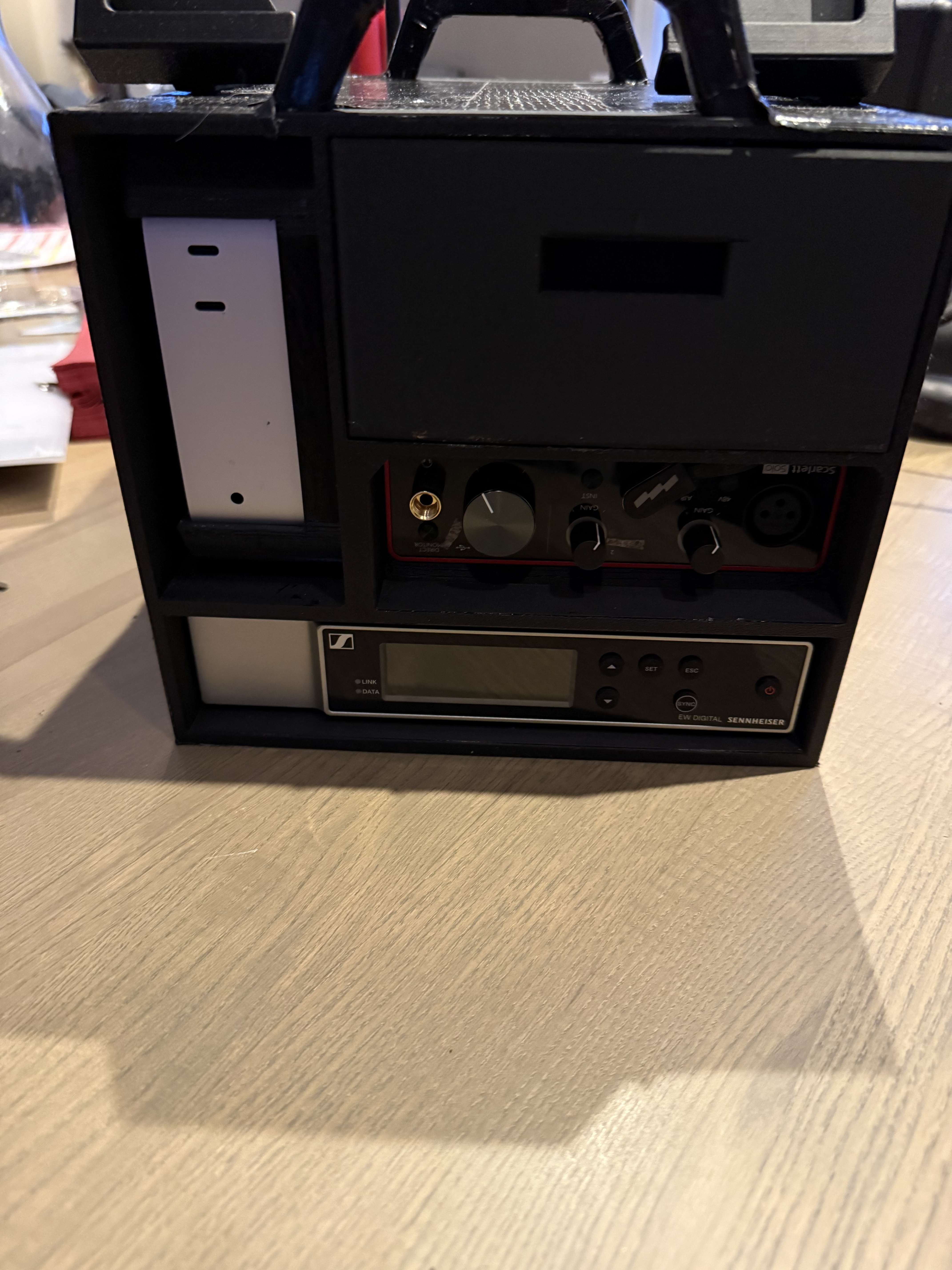

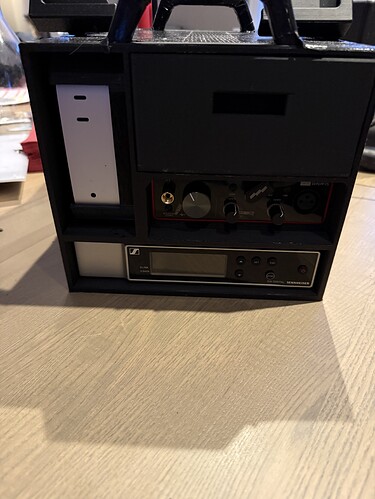

Custom made 3D printed cabinett/enclosure (my design).

Playing with Gig Performet that hosts Two Notes Genome but also Tonex and Amplitube :slight_smile:

10 Likes

Thanks!
Using a 12 button pedalboard with midi over Bluetooth to control rack spaces :blush:

1 Like

That’s so compact, its amazing.

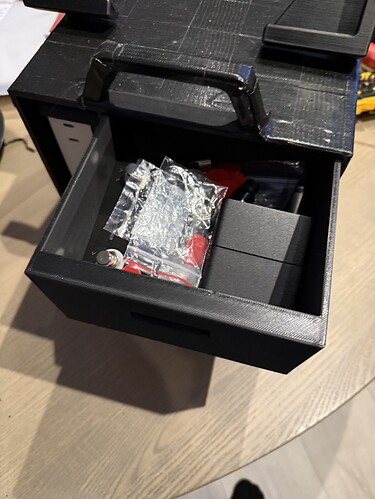

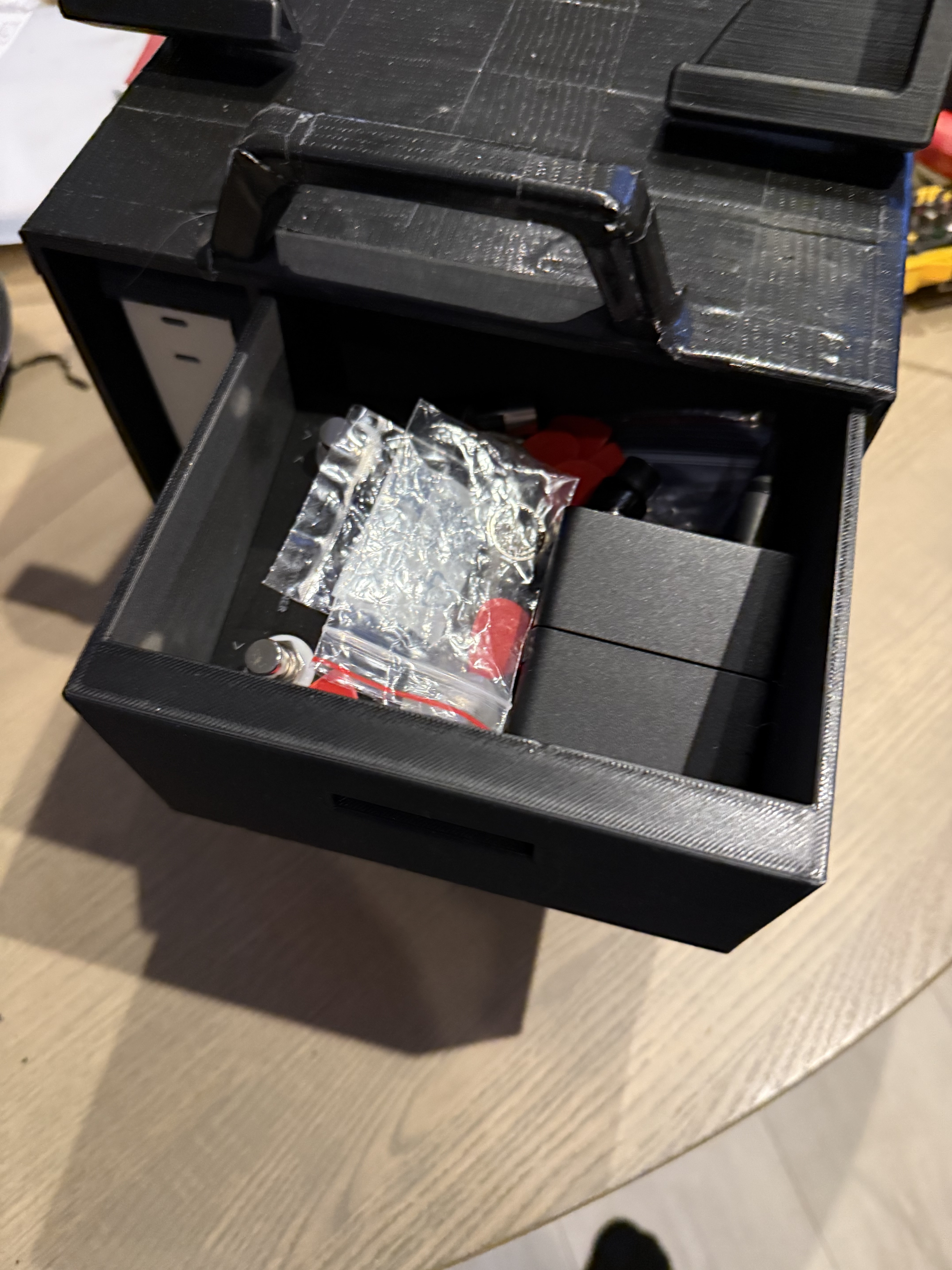

Even has the little drawer for extras.

Yeah, I keep my IEM-plugs, transmitter for the wireless and picks in the small drawer :slight_smile:

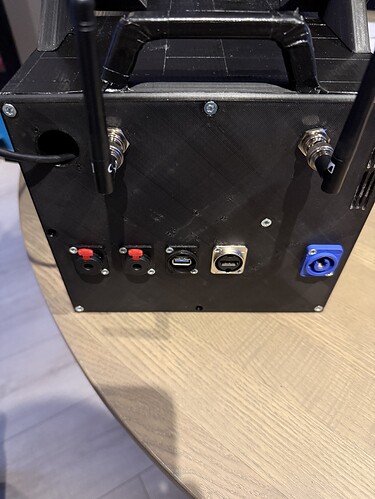

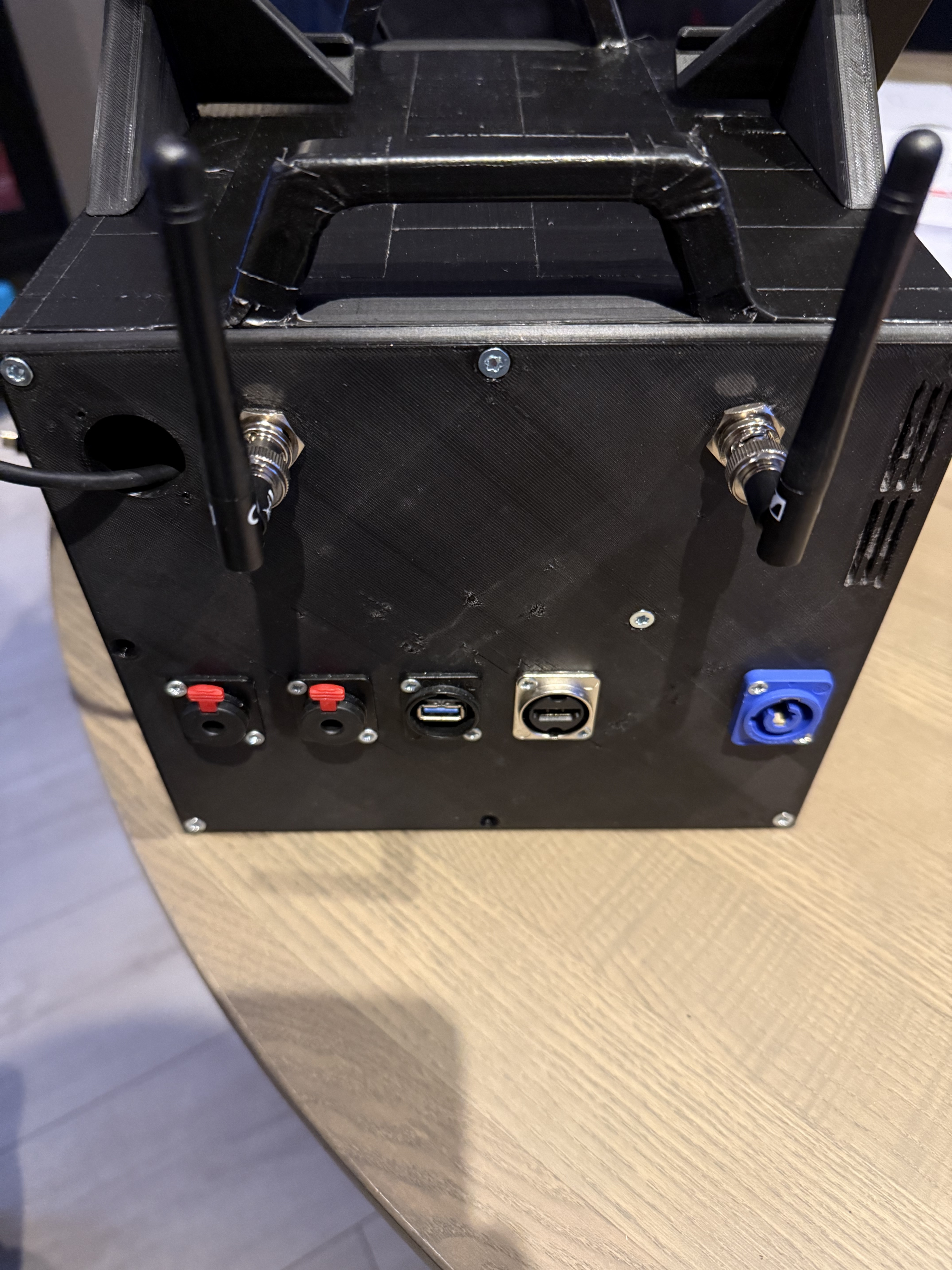

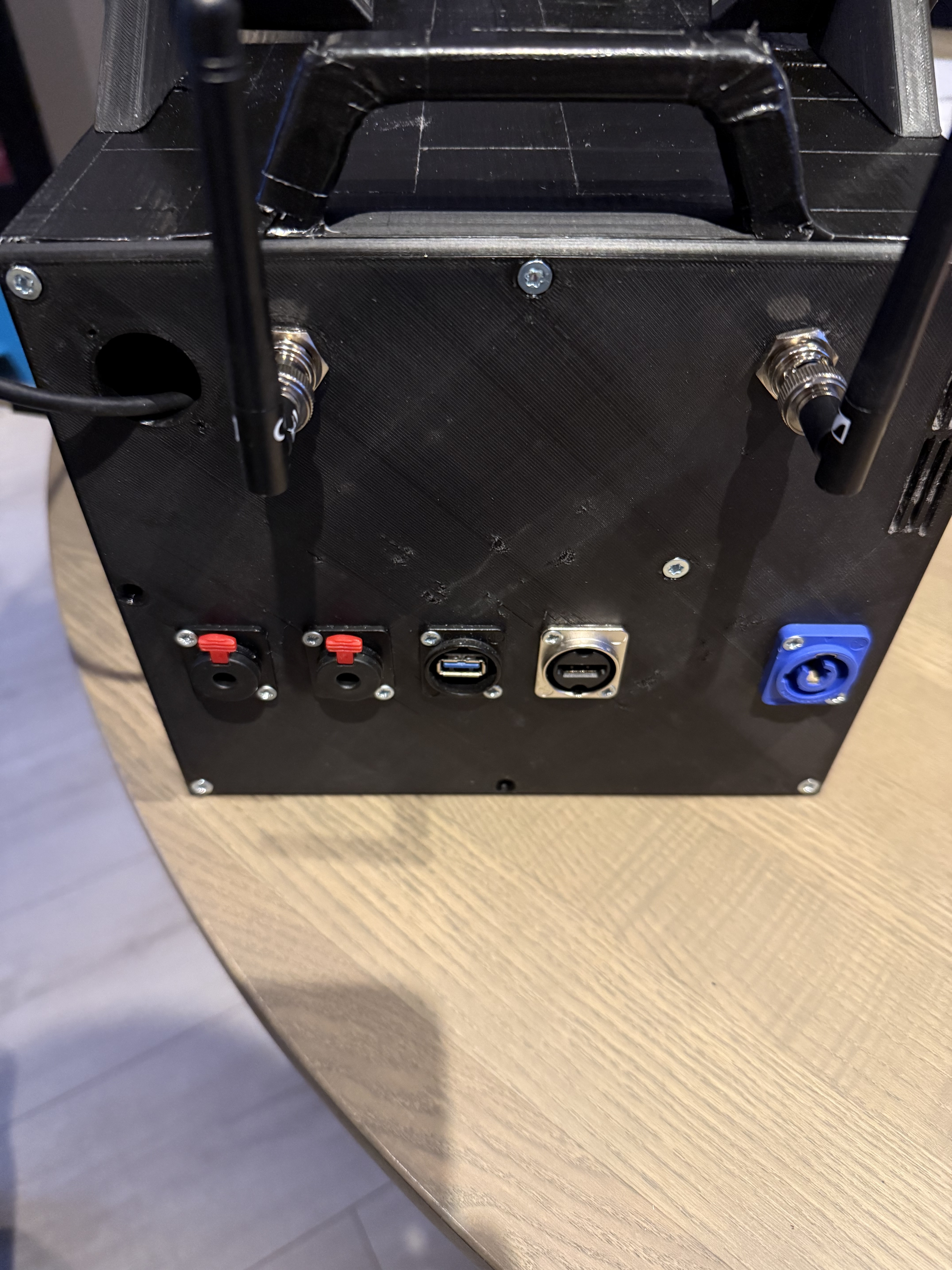

In the back I have made panel mounted connectors for audio out, USB A, C, HDMI (backup), and power in.

1 Like

Any videos? Are you satisfied with the sound quality? :slight_smile:

1 Like

Had it at band rehearsal last night. Very satisfied!
Sorry no video as of now. Playing a gig this weekend, let’s see after that :blush:




5 Likes

Very nice design !! :+1:
There are resins that erase the little imperfections of additive 3D printing and give a great surface finish. I don’t quite understand why there’s adhesive tape on the top and on the handles. It’s a bit of a shame for the overall look of the case. If it’s really necessary, maybe a piece of TOLEX would be nicer and maybe a piece of bicycle handlebar or tennis racket handle tape would be nicer on the handles.
How well do 3D-printed handles hold up?
Anyway, with GP inside it must sound great! :ok_hand:

2 Likes

:joy:

True! Was my first design and first time 3D printing, it took over 30 hours to print and since the plastic warped a little bit I put adhesive tape around the whole box, that’s why. Didn’t bother to do another 3D print. :blush:
I will check out and probably swap the tape for tolex. Good idea :+1:

1 Like

What is duet display?
Is that the small monitor?

I NEED something like this to fit my RME fire face.
Wow this is good!!!

1 Like

I ditched duet display and got this instead: FEELWORLD DH101 10.1 Inch Portable External Monitor Dual Full Function – feelworld official store

1 Like

That looks great for the price.
Let us know how it holds.
How responsive the touch screen is.
Does it disconnect.
Is it stable. Etc.

Using it for the last couple of weeks now… display is stable, and it holds up very well.
So far so good :blush:
