Hi, I’m having an issue with my expression pedal connected to my IK Multimedia Blueboard.
I created a widget and with midi learn function assigned the pedal to the widget (I need it to control the cut off). When I move the pedal down I see the widget moving from zero to the maximum value and I can’t control the amount with pedal…the oscillation is 0-127 and I cant’ control…it’s moving alone. do u have any suggestion?
tks
When you move your expression pedal, does the widget move the same way?
How looks the global MIDI monitor window, what messages can be seen?
How look the widget properties for MIDI?
I do not get the issue
Is the pedal calibrated?
As I understand what you wrote, you’re saying the pedal either goes on (127) or off (0) with no discrimination of values in between?
maybe I wasn’t able to describe the issue.
the value of the widget doest follow the movement of the pedal…when I press a bit the pedal it goes automatically from 0 to 127 or from 127 to zero (if I use inversion function) and I can’'t stop/control
this is what I see in the midi monitor
CC 12 Effect Control 1 (coarse): 105 Channel 1
CC 12 Effect Control 1 (coarse): 22 Channel 1
CC 12 Effect Control 1 (coarse): 24 Channel 1
CC 12 Effect Control 1 (coarse): 27 Channel 1
CC 12 Effect Control 1 (coarse): 30 Channel 1
CC 12 Effect Control 1 (coarse): 34 Channel 1
CC 12 Effect Control 1 (coarse): 39 Channel 1
CC 12 Effect Control 1 (coarse): 43 Channel 1
CC 12 Effect Control 1 (coarse): 49 Channel 1
CC 12 Effect Control 1 (coarse): 55 Channel 1
CC 12 Effect Control 1 (coarse): 61 Channel 1
CC 12 Effect Control 1 (coarse): 68 Channel 1
CC 12 Effect Control 1 (coarse): 75 Channel 1
CC 12 Effect Control 1 (coarse): 83 Channel 1
CC 12 Effect Control 1 (coarse): 92 Channel 1
CC 12 Effect Control 1 (coarse): 102 Channel 1
CC 12 Effect Control 1 (coarse): 112 Channel 1
CC 12 Effect Control 1 (coarse): 123 Channel 1
CC 12 Effect Control 1 (coarse): 127 Channel 1
Just a test, remove the widget, include a new widget, MIDI learn it and try again
tried! same problem. also with another expression pedal connected to the IK device
That is strange.
Did you try with a new empty gig?
yes I did
The MIDI messages you showed above are logged when you move you expression pedal from fully up to fully down?
exctely
Ok, can you upload the smallest possible gig file?
Why is the first value 105 and the next is 22?
test.gig (37.4 KB)
about the yellow widget…if I move the pedal down nothing happens…If I move the pedal from down to up the value change…it moves automatically from the minimum value to the maximum and I can’t control it
I loaded the gig and simulated your pedal with sending CC 12 from Ableton Live, no issue.
What is your pedal and why do you use IK Road?
Can you connect your expression pedal directly to you MAC/PC?
ok tks. so i suppose the problem is in the IK Board. I dont’ have the possibility to connect the expression pedal direct to the Mac, for this reason I’m using the IK item.
the pedal is a Yamaha
OK, I read the user manual of the IK device.
What happens when you plugin your pedal on the other socket?

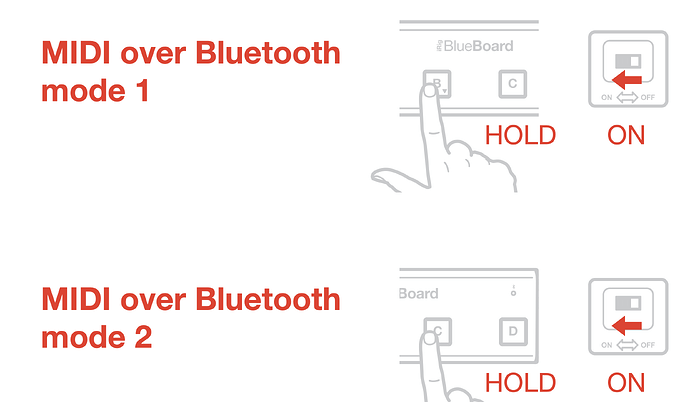

Are you using MIDI over Bluetooth mode 2?
With this mode the expression works this way
Exp Pedal 1: CC#12, continuous. Exp Pedal 2: CC#13, continuous.
yes, so should I switch to mode 1?
