Helsinki 1967 (NEW VERSION), a free sampled upright piano

Hello!

Couldn’t resist when the piano was still in decent tuning, so I went and sampled it again, this time with FIVE mics instead of three.
And what’s even better: you can blend the microphone balance to your taste!
Thanks to Kontakt 7 compression algorithm, the size is still only 706 MB even though the number of samples increased significantly (basically from 36 sample files to over 300).
DecentSampler version is 1,5 GB unzipped and doesn’t (yet) have the sustain pedal noise effective.

Micing setup on this larger version:

  • Two SM57s behind the piano close to the soundboard
  • Two OM1s close to the hammers and strings
  • One 47jr (omni pattern) for mono room sound
  • Four velocity layers sampled per key.
    Added in v. 1.1 pedal noise (and of course you can control the level)

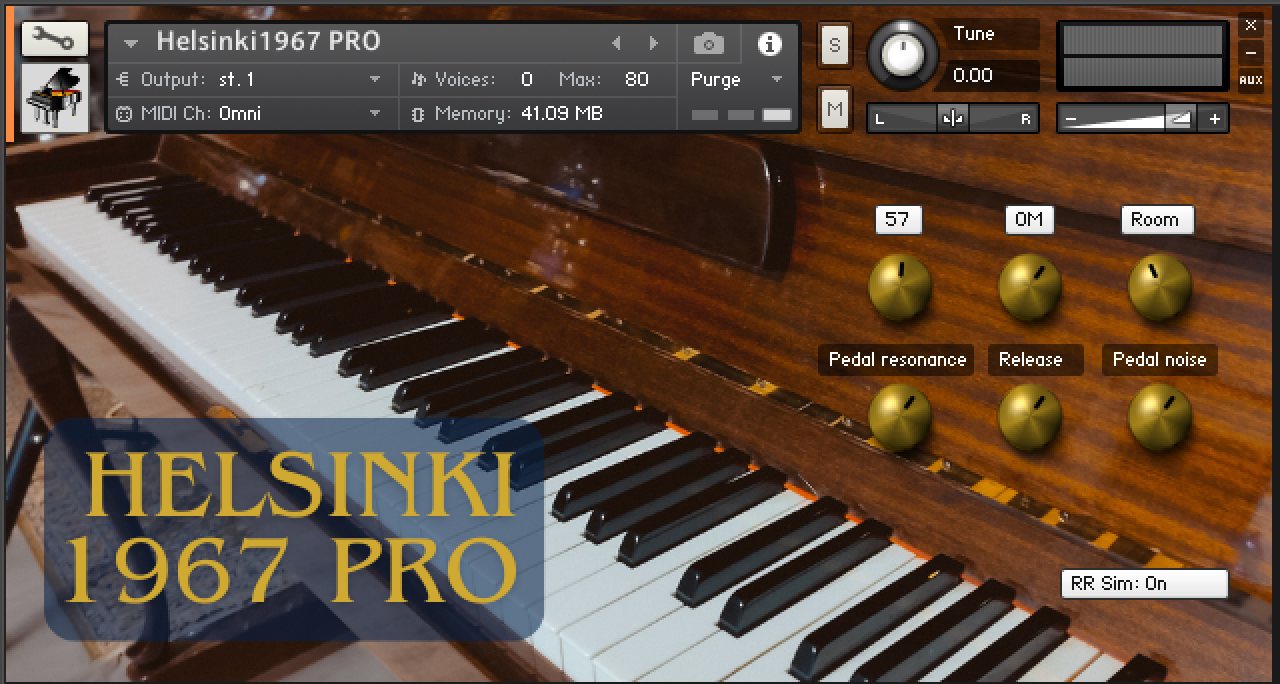

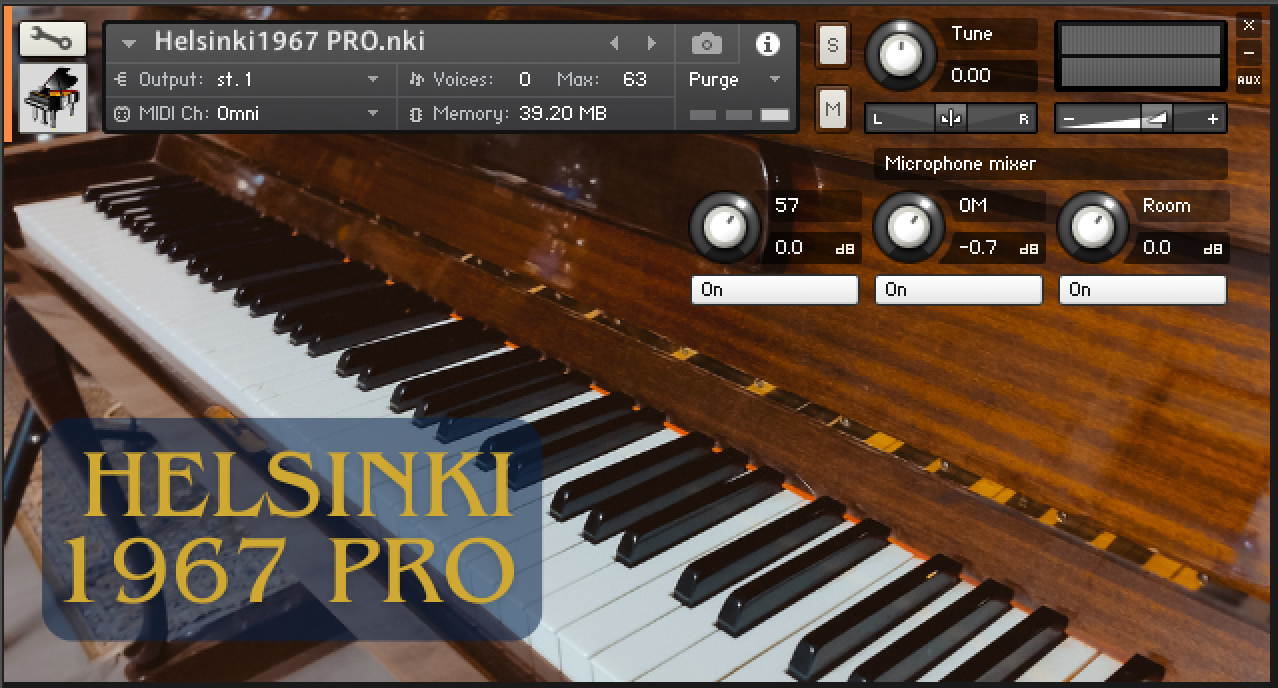

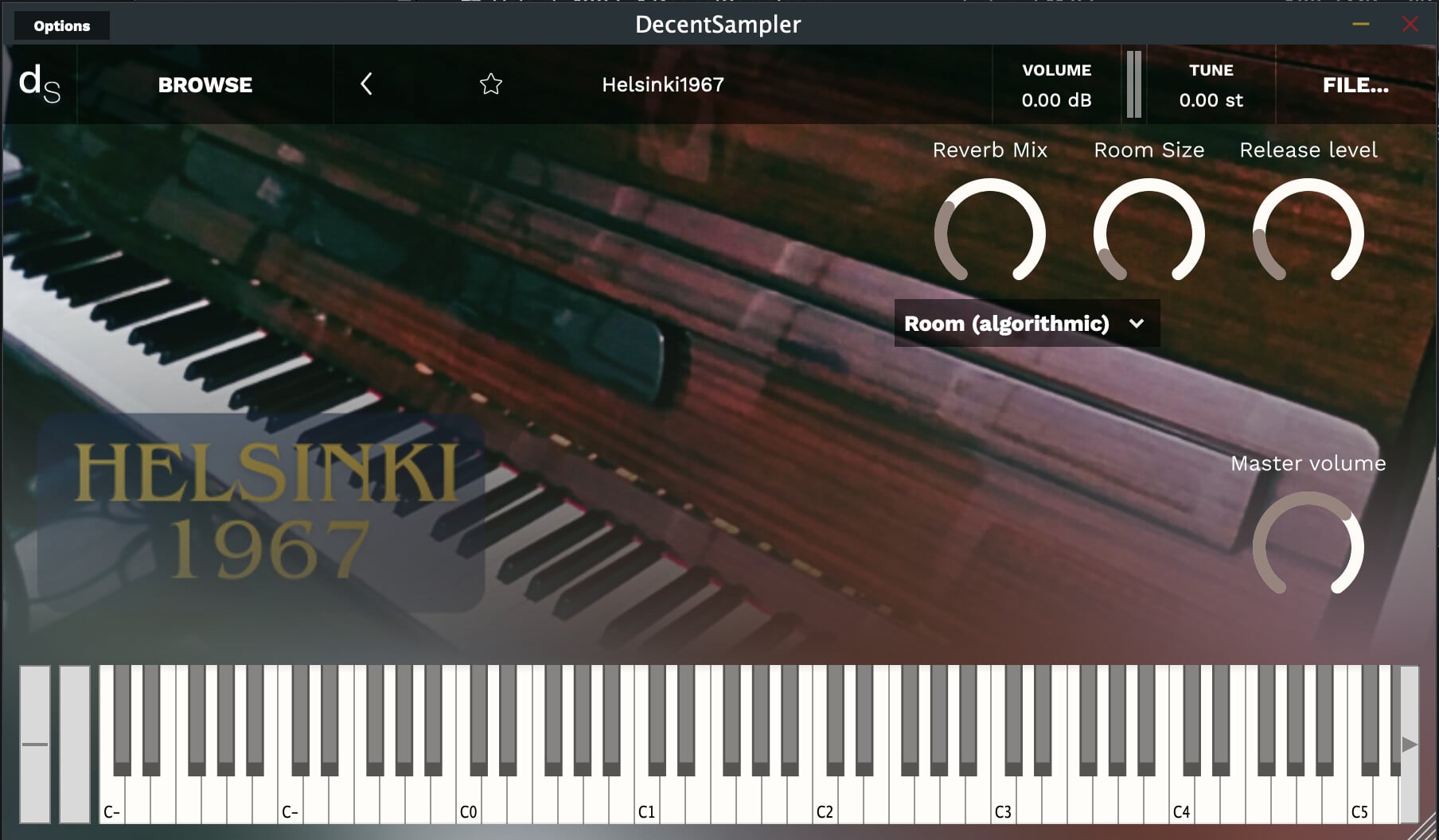

Both the Kontakt and DecentSampler versions have mixers for balancing the microphones (in Kontakt you can purge the unused samples to save RAM).

A very brief sound demo of the pro version, just showcasing different registers and dynamics.
Versions with all mics and no added reverb + same with Lady Chapel reverb in DecentSampler. No other processing done, this is what the instrument actually sounds like in DecentSampler.

Go ahead and grab the pro version from here:

My grandparents bought the piano from a shop then called Piano Jylhä (nowadays Soitin Jylhä), located in Jyväskylä, Finland. My mother started piano lessons the same year but ended up quitting six years later.
One of my very first conscious memories was when the piano was moved to my childhood home in 1994. It was located there until around 2012. There wasn’t enough room in my apartment for an acoustic piano back then, so the piano was borrowed to a local jazz musician who kept it in tune for practising.
In summer 2023 the piano was moved to my rehearsal space and that’s where this sample library was recorded.

About the original “light” version:

My first ever attempt to sample my old upright piano soon after it was tuned. The piano is a small ’chippendale’ model, manufactured in Finland somewhere around 1967. Inside the piano there is a text ”Helsinki” below the brand name, but it is very likely that the instrument was actually built in Nurmijärvi.

The end result won’t challenge any serious commercial upright libraries, but I’d say it’s still a decent piano sound with just a little bit over 200 megabytes of samples :smiley:

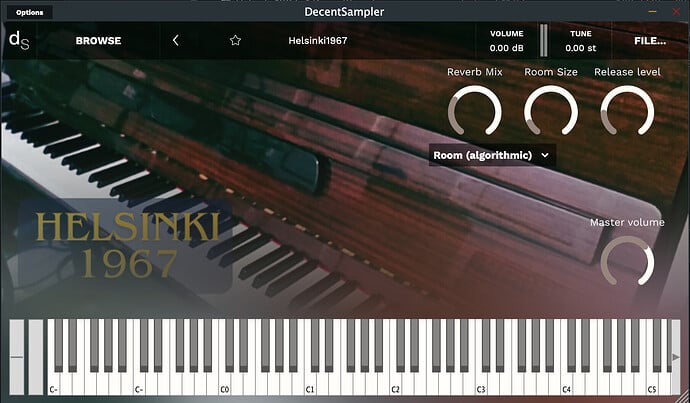

I know many people here use Kontakt and DecentSampler. Well, I made versions for both (Kontakt 7 and above), and also for Ableton Live and Logic Pro samplers. I must confess I spent most time tweaking the Kontakt version since that is what I’ll be mostly using, but the other three should also be reasonaby playable. Of course you are free to tweak the velocity switch points, filter settings etc. to your liking.

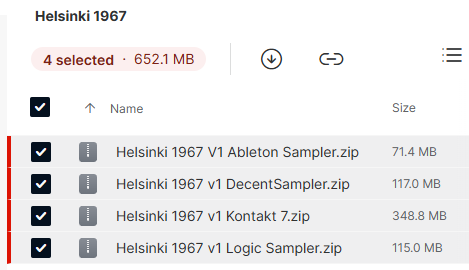

You’ll find all four versions through this link:

I used a matched pair of sE7 microphones as an XY pair above the strings and JZ Microphones BH-2 behind the piano. I had some strict time limitations: I had reserved the rehearsal space for one afternoon during a time period when, hopefully, the room would be very quiet, since the musicians who practise in adjacent rooms usually start a bit later. I got lucky, since the drumming did start just minutes after I had recorded the last release sample.

Here’s a very quick sound demo with the Kontakt version, one take and just a bit of reverb added.

Give it a try if you like, and feedback is always welcome :slightly_smiling_face: This thing likes reverb, the room where the piano was sampled is very dry so no room mics were used.

13 Likes

Updates to the DecentSampler version:

  • I boosted the overall gain of the instrument to match Kontakt 7 more closely
  • Boosted 7.5k on the first velocity group similarly to what I did in Kontakt, so now the two versions will match tonally.

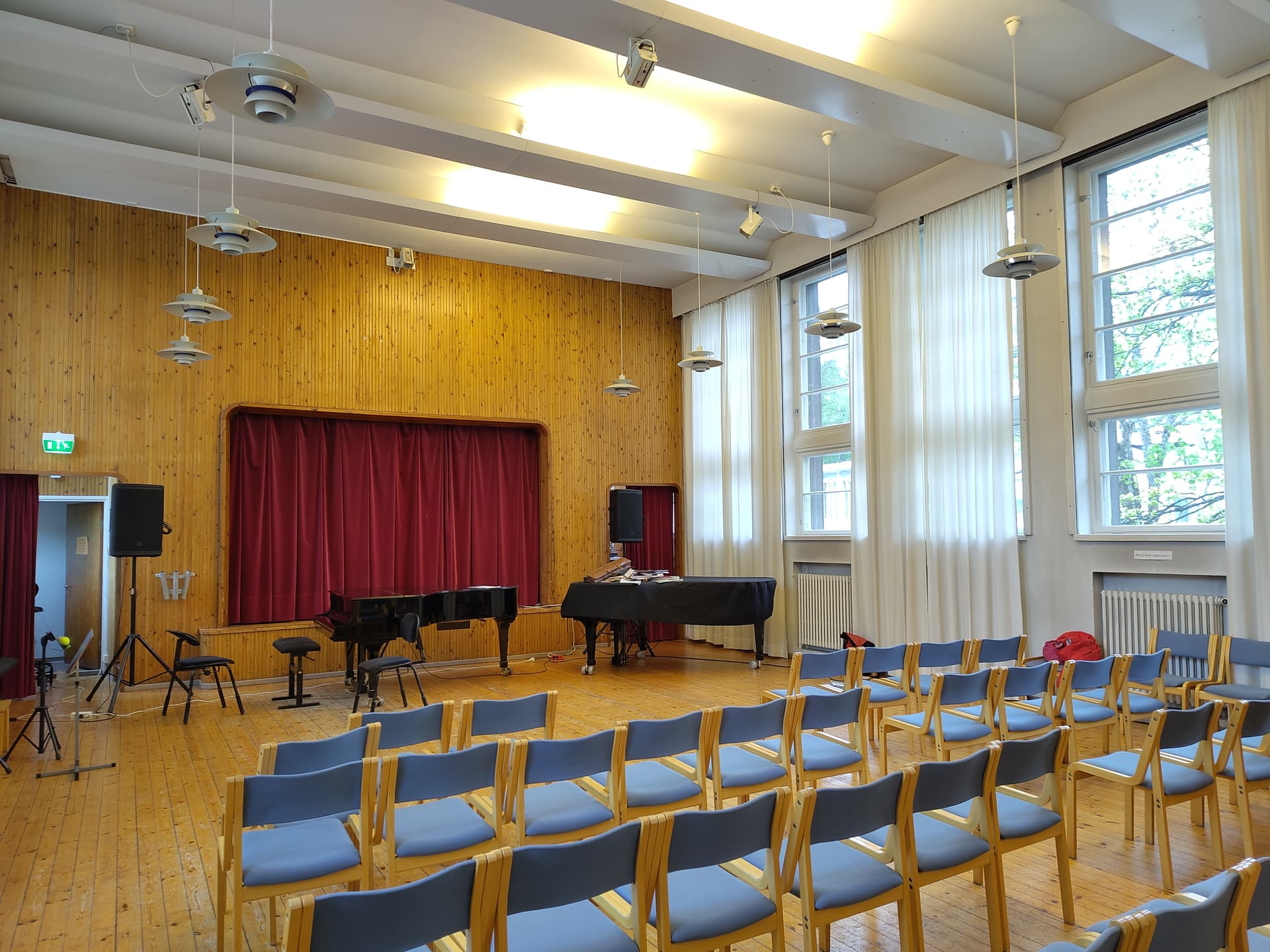

  • DecentSampler’s room algorithm doesn’t fit this piano as well as Kontakt’s built-in algorithm. Compensated this by offering two more reverb options for DecentSampler users. “Small Concert Hall” reverbs are both convolution based, impulse responses recorded from West Helsinki Music Institute by yours truly. Don’t expect a grand concert hall, I attached a picture of the actual space. I captured a 30 second sine sweep with XY and spaced omni pair settings. These IRs seem to compliment this particular piano sample.

3 Likes

This is awesome! :clinking_beer_mugs:

2 Likes

I dont see the quick audio demo link.

Sorry, the Soundcloud widget seems to be acting a bit strange.
Here’s a good old fashioned hyperlink for you: Stream Helsinki 1967 piano sample demo clip, Gymnopedie (E. Satie) by Mikko Patama | Listen online for free on SoundCloud

Hello,

Just letting you know there’s a new “PRO” version now available, recorded new samples this week with more mics, more velocity layers etc. and you can blend the mics however you like.
Just Kontakt 7 for now, might do at least a DecentSampler version at some point.

1 Like

Yet another update today:

  • Did some fine tweaking on the velocity switching points, now the Kontakt version is MUCH nicer to play dynamics wise!
  • ChatGPT made it a breeze to make DecentSampler version a reality relatively quickly. So now the PRO version is also for DecentSampler, although I couldn’t figure out just yet how to implement sustain pedal noise (there are topics on it online but none of the xml-snippets worked for me)

This appears to be THE acoustic piano I’ve been searching for. I’m spoiled by modeled pianos that are always in tune. Every (free) sampled piano I’ve tried so far has been too “honky tonk” for my tastes. So, I downloaded the Kontakt version, and got stuck. With no serial number, the free Kontak player won’t let me install the Helsinki 1967. Do I need the paid version of Kontak to use your library? Thanks!

Hello,

Unfortunately yes, the Kontakt version needs the full license to work. But the DecentSampler version should be perfectly functional, and it’s free! I’m figuring out how to implement the sustain pedal noise on the Dsampler version too. Otherwise it should be very similar to the Kontakt version. More features are on the way propably even this week (reverb options for the PRO version, better noise reduction for pianissimo layers etc.).

There was a dumb little typo in the latest DecentSampler version causing a mapping error for Release samples. I fixed it and release samples should now function correctly in the version downloadable from Mega.

3 Likes

Yet another update:

For DecentSampler, the version 1.22 now includes five reverb options: Lady Chapel and Usina del Arte are from openairlib.net licensed under a Creative Commons Attribution 4.0 International License (detailed IR credits in a txt file inside the package), School Hall, Small Room and Plate provided by yours truly.

And now there is a functional Logic EXS version! No visible mixer, but you may just adjust the levels of individual groups.
ConvertWithMoss by Jürgen Moßgraber made it super easy to have the EXS version up and running. Ableton sampler version wouldn’t work properly so I’ll just need to map that one by hand.

Possible Kontakt KSP scripting gurus out there:

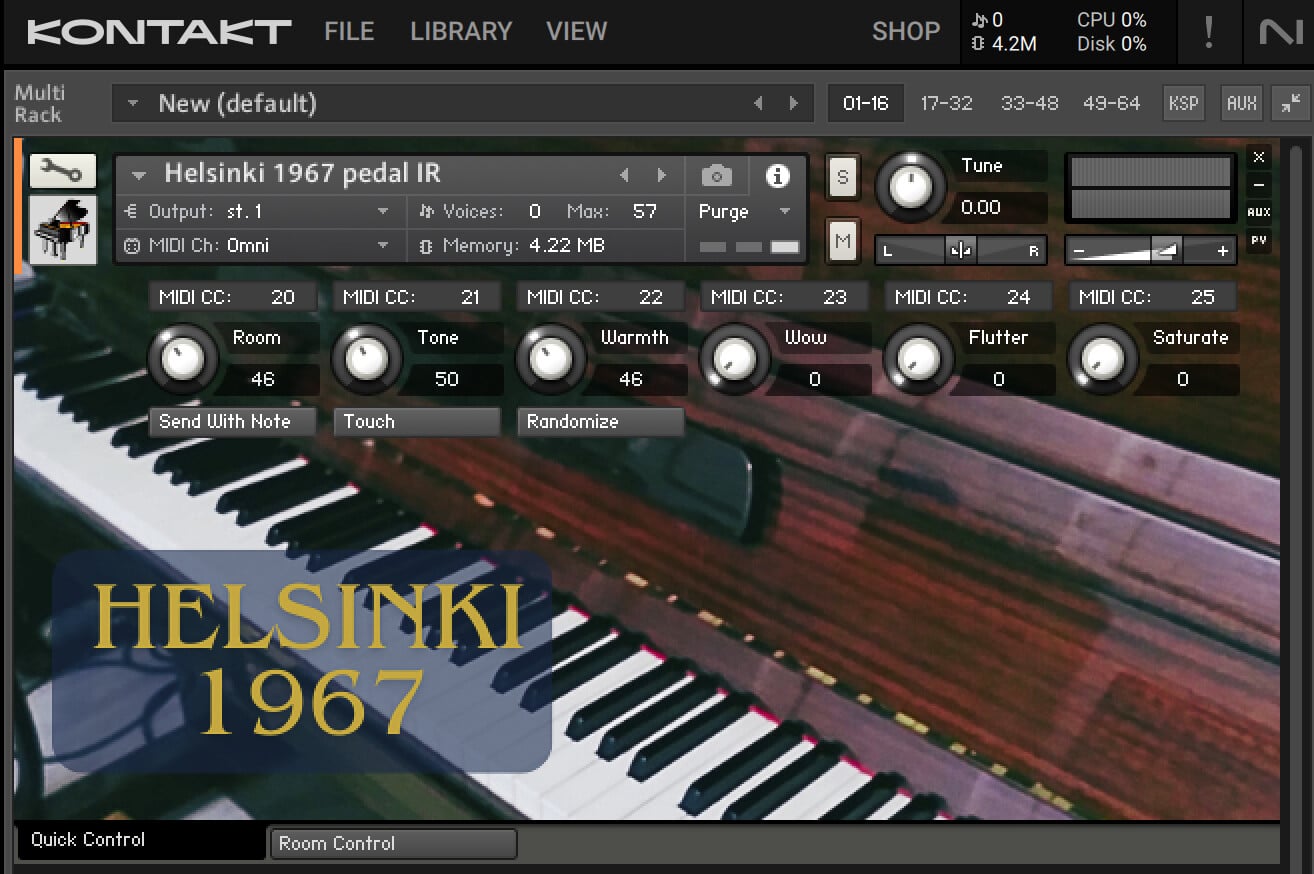

I spent a reasonable amount of time trying to figure out how to implement a working IR file switcher on the instrument panel, so Kontakt users could have the same reverb options as DecentSampler users, but had no luck so far. I suck at scripting, even with old and well documented languages like ksp, and had no luck with copying the reverb selector code from Factory Library instruments. ChatGPT was hallucinating way too much even with the KSP documentation .pdf available, so I might need help from someone who actually knows KSP well.

1 Like

More information: Helsinki 1967 PRO – Pianobook

(Note: the Pro version is also FREE)

1 Like

Yet another interesting update, this is something that is not too common even on commercial virtual pianos: separate audio outputs for each microphone perspective!

DecentSampler, Kontakt and Logic Sampler all support auxiliary outputs and individual groups can be routed freely to those outputs.

So why wouldn’t I allow people to record Helsinki 1967’s microphone perspectives to separate audio tracks? Now if you decide to use this instrument in a real production, you can send four stereo tracks and one mono (room) track for the mixing engineer and give them just as much flexibility as any multi-mic recorded piano tracks would give them! So go ahead and squash that Room track with heavy compression, give those 57s more air with an EQ and emphasise the hammer transients on the OM and Release tracks to achieve your “early Coldplay pop-upright” sound!

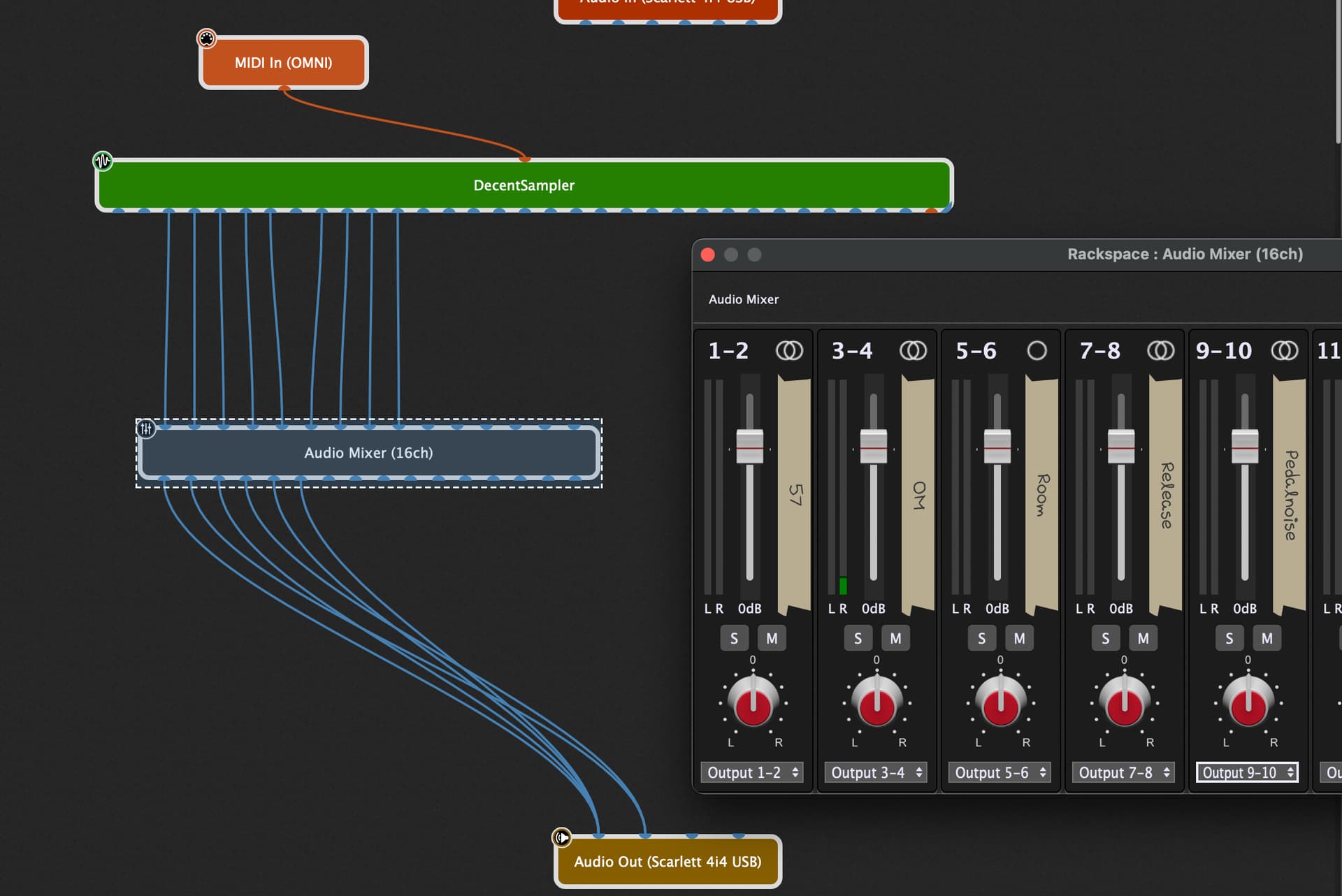

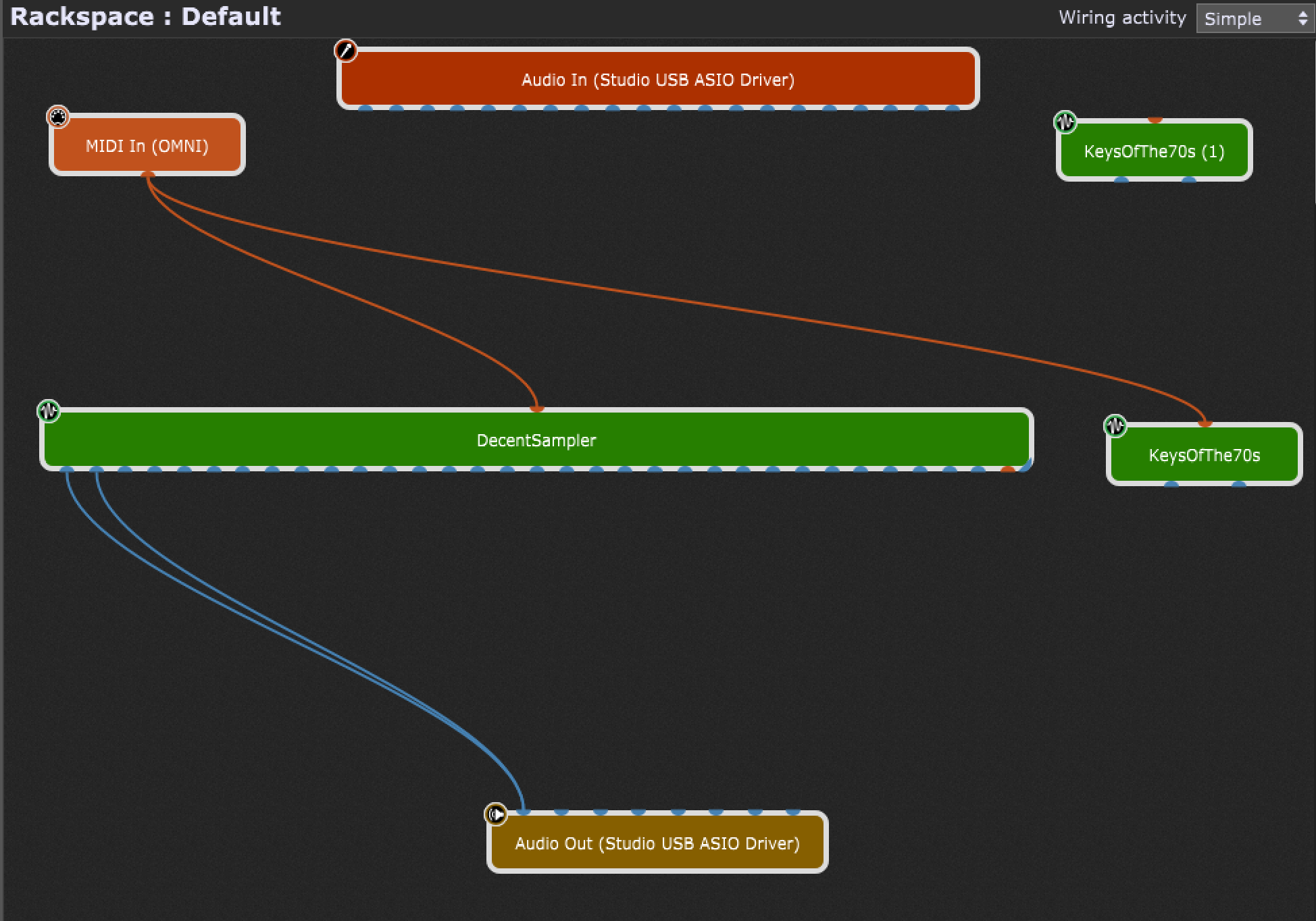

For GigPerformer users, this is easily visualised in this screenshot.
Instead of outputting everything from main outs (1-2), each mic group is routed to DecentSampler’s aux outputs, allowing individual processing outside DecentSampler.

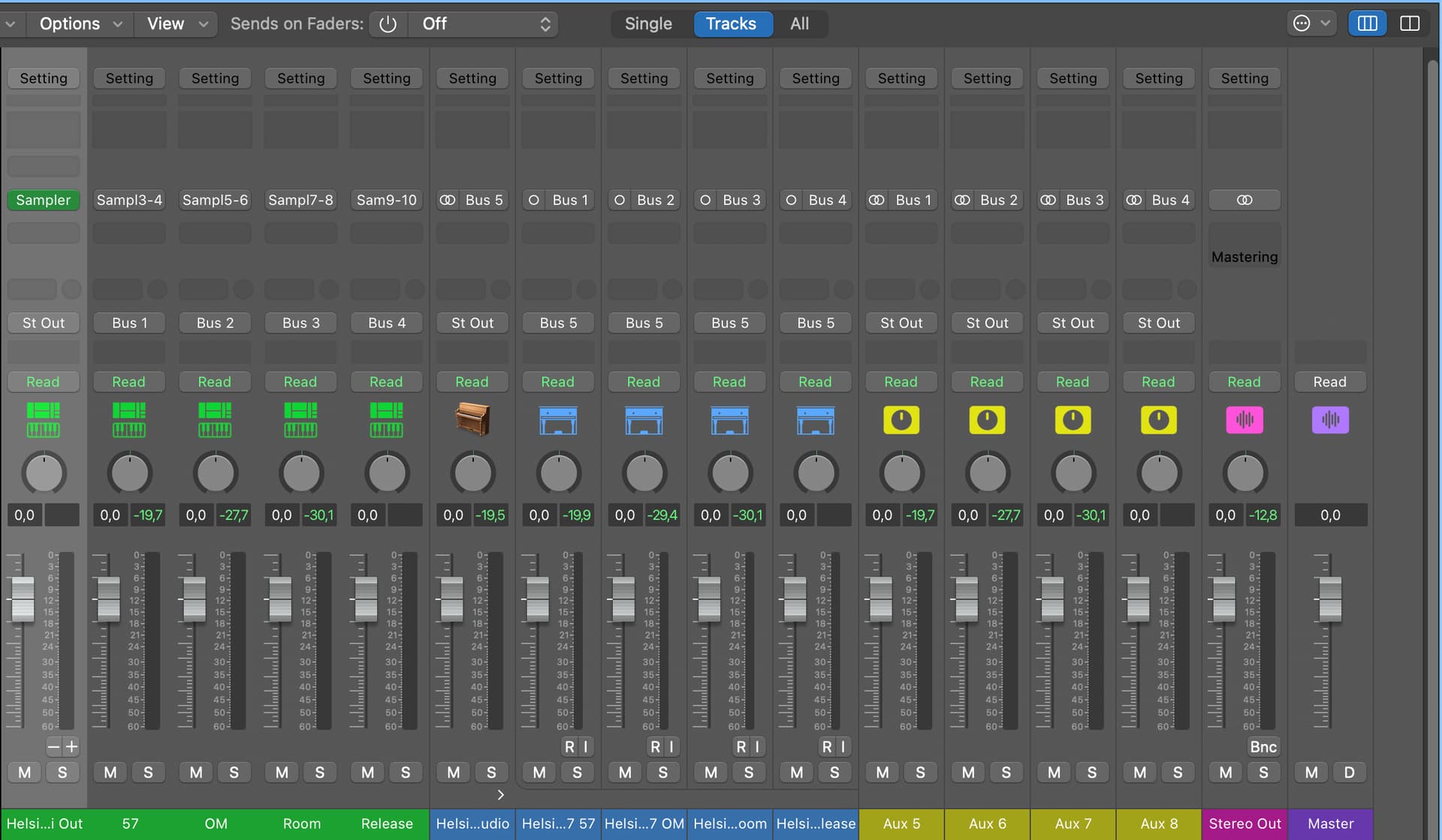

Logic users won’t be needing the DecentSampler version, since this is natively supported by Logic’s own sampler. A screenshot of a recording template I made:

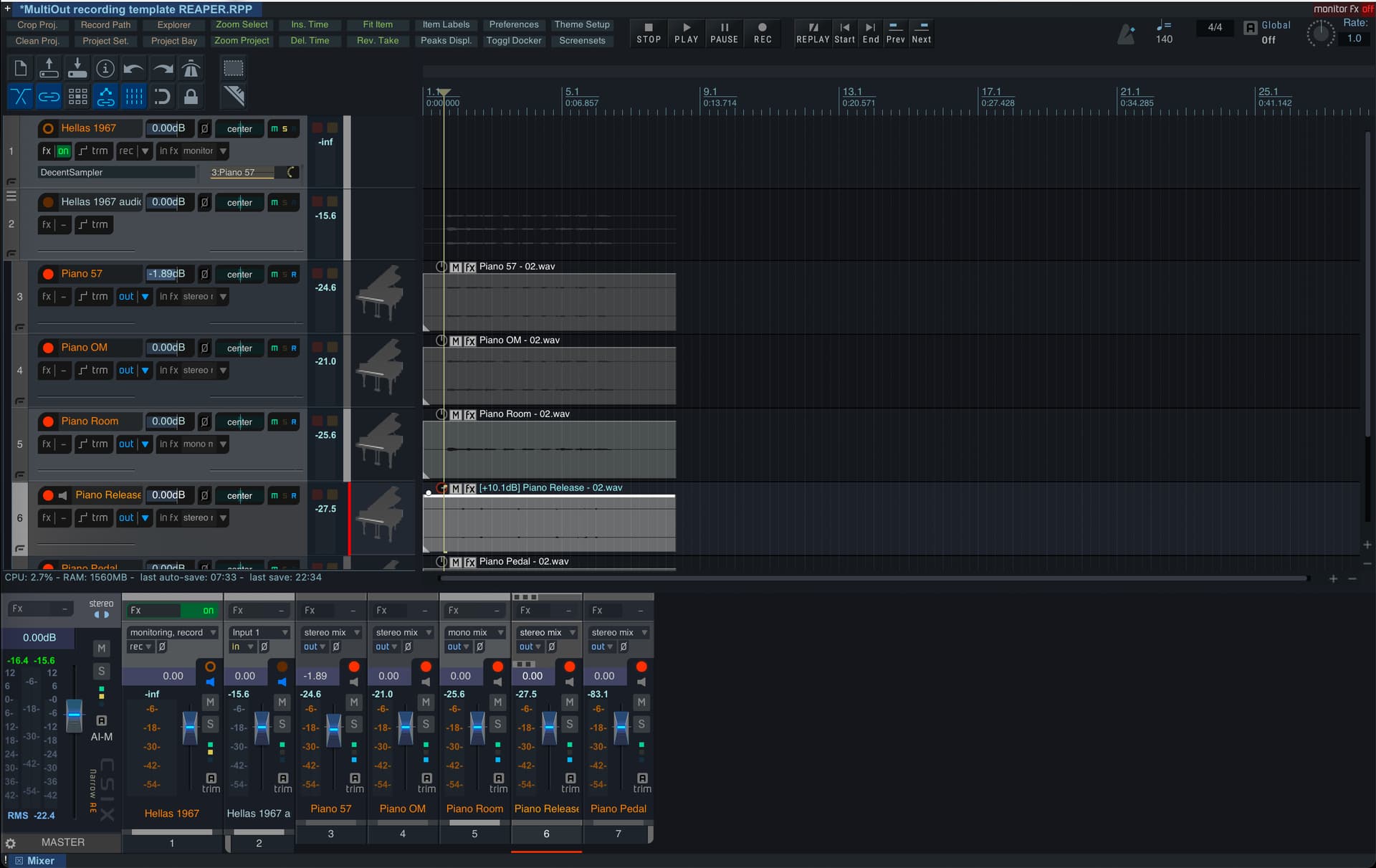

And since I mainly use Reaper for mixing and recording audio stuff, I naturally created a project template for Reaper users with DecentSampler. Kontakt version coming soon.
