Where do widget MIDI SYNC messages go

General discussion about Gig Performer
1

When a Widget’s MIDI config is set with SYNC enabled, where does that message go?

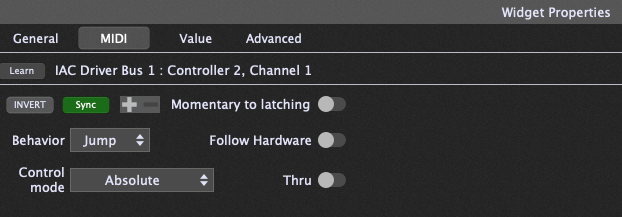

GP-sync-mode
GP-sync-mode622×217 31.9 KB

My understanding, and experience, is SYNC will send a MIDI message OUT when the widget is clicked. The message will be the same as the message it’s assigned to listen to, the IN message.

I was playing with this and it works - my MIDI Captain running MIDI Captain MAX firmware responds instantly to clicks in GP. But I don’t see the messages on any of my MIDI Monitors, regardless of what output i monitor.

How can I monitor the MIDI coming out of GP from these SYNC widgets?

2

In the Global MIDI Monitor Window check “MIDI Out”.
Then Move your widget and you should see outgoing MIDI messages.

3

IAC connections are only half a MIDI cable so when you move the widget the message goes back to the input of the widget. If you need a MIDI out you will need to create a second IAC connection and use Associate MIDI output device in Rig Manager
