MSB / LSB bank sends in song parts

Hi,

GP4 is incredible!! Thank you so much guys!

Question: Normally I would send out MSB/LSB en PC messages from a song part. PC works, but how do I send out MSB / LSB ?

Thanx again!

This is documented

https://gigperformer.com/docs/GP4UserManual/song-part-properties.html

Sorry, still can’t find the solution… :frowning:
I know I have to use the midi helper tool, and can find the Program Change but not the MSB/LSB

No, you do not need to use the MIDI Helper Tool for this. You just have to know the values for the MSB and LSB fields — those are functions of your synth.

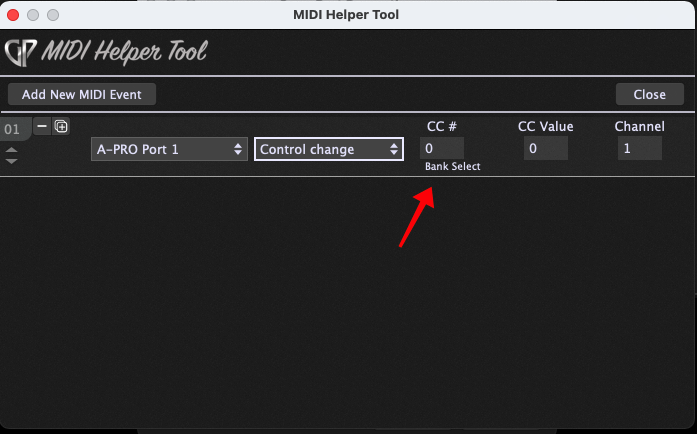

screenshot_4876

Oh I thought this was to select a song part.
I’d like to send out LSB/MSB to an external device when selecting a song-part. I use to do that in GP3 within the extra information window in the song part properties (xB0 00 XX, xB0 32 XX).

Hope you can help!

Oh sorry — I misunderstood

Just click the Edit… button and you can create a sequence of MIDI events.

Again, that’s in the documentation, right on the first page of that link I posted earlier

https://gigperformer.com/docs/GP4UserManual/song-part-properties.html

OK - now I understand the confusion. The MSB and LSB are really just CC messages.

CC-0 is known as “Bank Select” and CC-32 is known as “Bank Select (fine)”

Those are MSB and LSB respectively

1 Like

Ah thanx. I didn’t know I could this with CC. Perfect!
